Geared Piano Hinge 2-1/4 in W MPN:DHS83

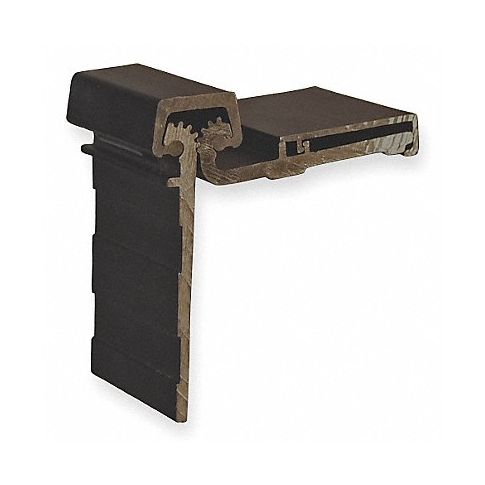

Geared Piano Hinge 2-1/4 in W
PEMKO's Geared Piano Hinge is an exceptional solution for doors or lids that require a high load capacity while maintaining a secure and sealed connection. This durable aluminum hinge distributes weight evenly and won't bend or break, ensuring a long-lasting and reliable installation. With a 180 range of motion, this continuous hinge is ideal for heavy-duty applications, such as industrial cabinets, storage units, and more. Its unique design provides a tight seal against prying to protect your valuable assets, while also ensuring easy access when needed. Upgrade to PEMKO's Geared Piano Hinge and experience the difference in quality and performance for yourself!
Top product features:
- Aluminum construction for durability and resistance against corrosion
- Geared mechanism to distribute weight evenly and provide sealed connections
- Half-surface design with a full-length channel cap for gap sealing and secure door closure
Top product applications:
- Industrial use in storage cabinets and shelves
- Residential use in bookshelves and closet doors
- Commercial use in kitchen cabinetry and garage door applications
The PEMKO load-rated anodized aluminum hinge is a rugged, no handed geared hinge won't bend or break like hinges with pins and knuckles. Hinge distributes weight evenly on the door and door frame and is suitable for sagging doors or lids. Features a full-length channel cap and helps seal the gap between door and frame to secure door against prying. Constructed of 6063-T6 aluminum alloy with a minimum 10 countersunk holes per leaf. Hinge has a 180° range of motion. Type: half surface. 280-lb. load capacity.
Technical Specifications
- Item Continuous Hinge
- Ligature Resistant No
- Material Aluminum
- Range of Motion 180 Degrees
- Finish Dark Bronze
- Holes With
- Load Capacity 280.0 lb
- Orientation Non Handed
- Door Leaf Height 2 9/16 in
- Frame Leaf Height 2 9/16 in
- Door Leaf Width 1 7/8 in
- Frame Leaf Width 2 in
- Door Leaf Thickness 0.187 in
- Frame Leaf Thickness 0.187 in
- Required Door Thickness 1-3/4 in
- Length 6 ft 11 in
- Hardware Not Included
- Holes per Leaf 10
- Mounting Half Surface
- Standards ANSI/BHMA A156.26-2000, UL 76Y2, UL10C
- Overall Width 4 1/2 in
- UL Fire Rating UL10C
Manufacturer Details
- Manufacturer: Pemko
- Condensed Mfg Number: DHS83
- MPN: DHS83
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8302106030
- GDS Category Name: Piano Hinges
- GDS Family Name: Latches Hasps and Hinges
- GDS Segment Name: Hardware
- UNSPSC: 31162403
- UNSPSC Class ID: 24
- UNSPSC Commodity Name: Miscellaneous fasteners
- UNSPSC Commodity ID: 03
- UNSPSC Commodity Name: Hinges
- UNSPSC Family ID: 16
- UNSPSC Family Name: Hardware
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Related ASINs: B008FNYVPY, B086HJ3H6T, B086HH67D4
Product info last updated on April 3, 2024 8:26pm UTC Category: Latches Hasps and Hinges
