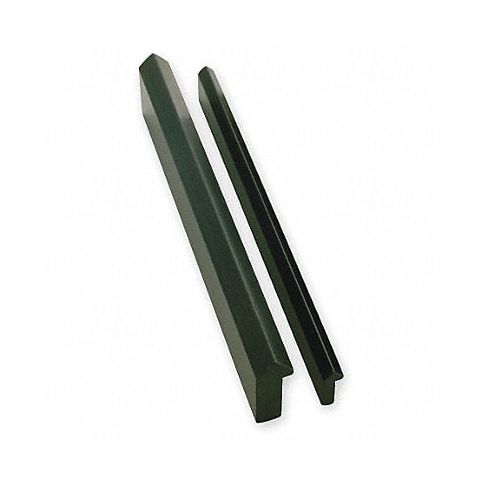

Linear Rail 25 In L 0.437 W 1.062 In H MPN:VRD4-025.000
Linear Rail 25 In L 0.437 W 1.062 In H
The linear rail offers a strong, lightweight aluminum profile for smooth, stable motion in industrial settings. It measures 25 inches long with an extruded profile that provides high load-bearing capacity and precision machined grooves allow easy installation, even in tight spaces. With its durable design, this rail is suitable for use in harsh environments where consistency is crucial; perfect for manufacturers, robotics systems integrators, and engineers alike working with power transmission projects requiring large amounts of linear movement.
Buy Pbc Linear item #VRD4-025.000 ✯ Made in the USA ✯ and sold by a Veteran-Owned Business.
Technical Specifications
- Item Drilled Linear Rail
- Type V-Guide
- Overall Length 25 in
- Overall Width 0.437 in
- Overall Height 1.062 in
- Number of Rail Holes 7
- Mounting Hole from Shaft End 0.5 in
- Mounting Hole Center to Center 4 in
- Mounting Hole Size 0.344 in
- Thread Size 0.312 in or M8
- Screw Type Low Profile Socket Head Cap
- Temp. Range 0 - 248F
- Rail Material Carbon Steel
- Rail Finish Cold Roll
- Raceway 52100 Steel
- For Use With V-Guide Wheels and Bushings
Manufacturer Details
- Manufacturer: Pbc Linear
- Condensed Mfg Number: VRD4025000
- MPN: VRD4-025.000
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Linear Guide Rails
- GDS Family Name: Linear Motion
- GDS Segment Name: Power Transmission
- UNSPSC: 23153030
- UNSPSC Class ID: 30
- UNSPSC Commodity Name: Holding and positioning and guiding systems and devices
- UNSPSC Commodity ID: 30
- UNSPSC Commodity Name: Linear motion guides
- UNSPSC Family ID: 15
- UNSPSC Family Name: Industrial process machinery and equipment and supplies
- UNSPSC Segment ID: 23
- UNSPSC Segment Name: Industrial Manufacturing and Processing Machinery and Accessories
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 3, 2024 9:49pm UTC
Category: Linear Motion
