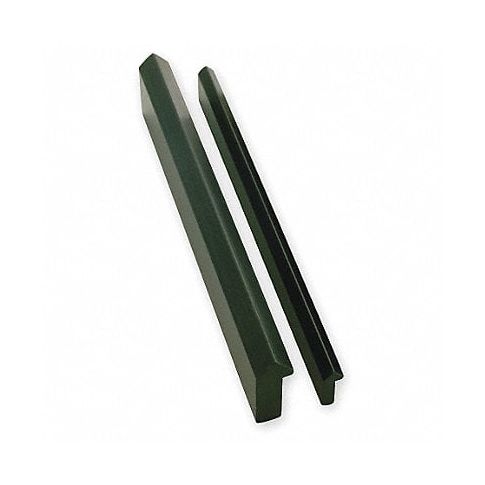

Linear Rail 12.63 In L 0.250 W 0.625 H MPN:VRD2-012.630

Technical Specifications

• Item Drilled Linear Rail
• Type V-Guide
• Overall Length 12.63 in
• Overall Width 0.25 in
• Overall Height 0.625 in
• Number of Rail Holes 5
• Mounting Hole from Shaft End 0.315 in
• Mounting Hole Center to Center 3 in
• Mounting Hole Size 0.203 in
• Thread Size #10 or M6
• Screw Type Low Profile Socket Head Cap
• Temp. Range 0 - 248F
• Rail Material Carbon Steel
• Rail Finish Cold Roll
• Raceway 52100 Steel
• For Use With V-Guide Wheels and Bushings

Manufacturer Details

• Manufacturer: Pbc Linear
• Condensed Mfg Number: VRD2012630
• MPN: VRD2-012.630

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: US
• CA Prop 65 Wht Label: N

Classification Details

• GDS Category Name: Linear Guide Rails
• GDS Family Name: Linear Motion
• GDS Segment Name: Power Transmission
• UNSPSC: 23153030
• UNSPSC Class ID: 30
• UNSPSC Commodity Name: Holding and positioning and guiding systems and devices
• UNSPSC Commodity ID: 30
• UNSPSC Commodity Name: Linear motion guides
• UNSPSC Family ID: 15
• UNSPSC Family Name: Industrial process machinery and equipment and supplies
• UNSPSC Segment ID: 23
• UNSPSC Segment Name: Industrial Manufacturing and Processing Machinery and Accessories

Shipping Details

• Not For Sale In: HI AK PR
