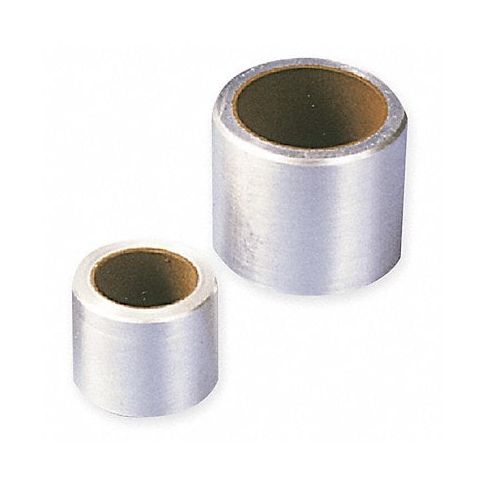

Linear Sleeve Bearing ID 3/4 In MPN:PS1216-08
Linear Sleeve Bearing ID 3/4 In
A high-quality sleeve bearing ideal for light to medium load applications within different industries; made of premium chrome steel for maximum durability, rigidity, and corrosion resistance. With an I.D measurement of 0.75 inches and open design allowing lubrication directly on the shaft thus reducing maintenance time while increasing service life within its operation. Easily mountable into any standard housing making it versatile thus popular among professionals in multiple disciplines requiring economical, robust performance in their applications.
Linear Sleeve Bearings• Anodized aluminum alloy shell with self-lubricating FrelonGOLD® liner Operating temp. range: -400° to 400°FPrecision sleeve bearings supply 20 times more load capacity than comparable rolling element bearings. Eliminate galling and shaft damage, absorb shock loads, and dampen vibration for smooth and quiet operation. No metal-to-metal contact. The close fit and wiping action eliminate the need for seals. Provide high strength and low wear in linear, oscillating, and rotary motions. Impervious to most chemicals and acids and suitable for extreme dirt conditions.
Technical Specifications
- Inside Dia. 3/4 in
- Inside Dia. Tolerance +/-0.001
- Outside Dia. 1 in
- Outside Dia. Tolerance +/-0.001
- Length 1 in
- Static Load Capacity 2,210 lb
- Max. Pv 20,000
- Recommended Housing Bore 1.002 in
- Liner Frelon(TM) Gold
Manufacturer Details
- Manufacturer: Pbc Linear
- Condensed Mfg Number: PS121608
- MPN: PS1216-08
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Linear Sleeve and Plain Bearing
- GDS Family Name: Linear Motion
- GDS Segment Name: Power Transmission
- UNSPSC: 31171506
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 06
- UNSPSC Commodity Name: Linear bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 3, 2024 9:49pm UTC
Category: Linear Motion
