Linear Sleeve Bearing ID 3/8 In MPN:PS0610-06

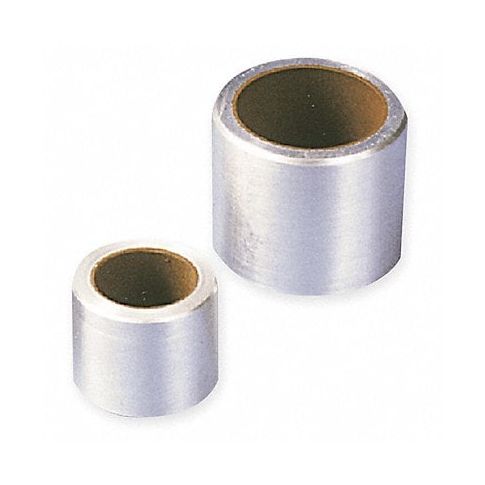

Linear Sleeve Bearing ID 3/8 In
The linear sleeve bearing, with an internal diameter measuring 0.375 inches or 9.5mm, is an ideal solution for sliding mechanisms where precise motion and low friction are essential. It's typically used in applications like machinery assemblies, automotive suspensions, or robotics equipment requiring controlled movement without compromising load capacity or lubrication consistency over time. It accommodates rod diameter between 3/8 to 1-inch range (9.5mm to 25.4mm), and the low profile sleeve design saves space when mounting inside enclosed environments while still offering excellent wear resistance for reliable performance that prolongs service life.
Linear Sleeve Bearings• Anodized aluminum alloy shell with self-lubricating FrelonGOLD® liner Operating temp. range: -400° to 400°FPrecision sleeve bearings supply 20 times more load capacity than comparable rolling element bearings. Eliminate galling and shaft damage, absorb shock loads, and dampen vibration for smooth and quiet operation. No metal-to-metal contact. The close fit and wiping action eliminate the need for seals. Provide high strength and low wear in linear, oscillating, and rotary motions. Impervious to most chemicals and acids and suitable for extreme dirt conditions.
Technical Specifications
- Inside Dia. 3/8 in
- Inside Dia. Tolerance +/-0.001
- Outside Dia. 5/8 in
- Outside Dia. Tolerance +/-0.001
- Length 3/4 in
- Static Load Capacity 824 lb
- Max. Pv 20,000
- Recommended Housing Bore 0.627 in
- Liner Frelon(TM) Gold
Manufacturer Details
- Manufacturer: Pbc Linear
- Condensed Mfg Number: PS061006
- MPN: PS0610-06
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8482105012
- GDS Category Name: Linear Sleeve and Plain Bearing
- GDS Family Name: Linear Motion
- GDS Segment Name: Power Transmission
- UNSPSC: 31171506
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 06
- UNSPSC Commodity Name: Linear bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 3, 2024 9:49pm UTC
Category: Linear Motion
