Linear Sleeve Bearing ID 3/16 In MPN:PS0305-04

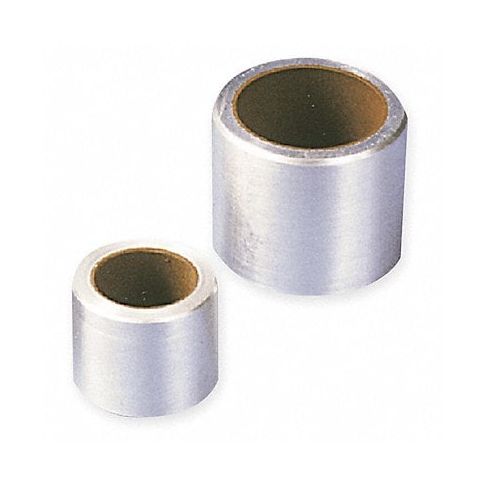

Linear Sleeve Bearing ID 3/16 In
A linear sleeve bearing with an ID of 3/16 (0.1875) is perfect for applications that require low friction and minimal lubrication in a tight space. The stainless-steel construction ensures corrosion resistance while maintaining strength and durability. Its thin design allows for precise positioning and alignment, making it suitable for robotics, linear slides, gears and machinery parts. Linear sleeve bearings are widely used in numerous industries such as automotive, aerospace, military and manufacturing to facilitate smooth movement or conveyance. This versatile component offers high precision at an economical cost, making it an essential component for any equipment requiring linear motion support.
Linear Sleeve Bearings• Anodized aluminum alloy shell with self-lubricating FrelonGOLD® liner Operating temp. range: -400° to 400°FPrecision sleeve bearings supply 20 times more load capacity than comparable rolling element bearings. Eliminate galling and shaft damage, absorb shock loads, and dampen vibration for smooth and quiet operation. No metal-to-metal contact. The close fit and wiping action eliminate the need for seals. Provide high strength and low wear in linear, oscillating, and rotary motions. Impervious to most chemicals and acids and suitable for extreme dirt conditions.
Technical Specifications
- Inside Dia. 3/16 in
- Inside Dia. Tolerance +/-0.001
- Outside Dia. 5/16 in
- Outside Dia. Tolerance +/-0.001
- Length 1/2 in
- Static Load Capacity 272 lb
- Max. Pv 20,000
- Recommended Housing Bore 0.315 in
- Liner Frelon(TM) Gold
Manufacturer Details
- Manufacturer: Pbc Linear
- Condensed Mfg Number: PS030504
- MPN: PS0305-04
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483308090
- GDS Category Name: Linear Sleeve and Plain Bearing
- GDS Family Name: Linear Motion
- GDS Segment Name: Power Transmission
- UNSPSC: 31171506
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 06
- UNSPSC Commodity Name: Linear bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 3, 2024 9:49pm UTC
Category: Linear Motion
