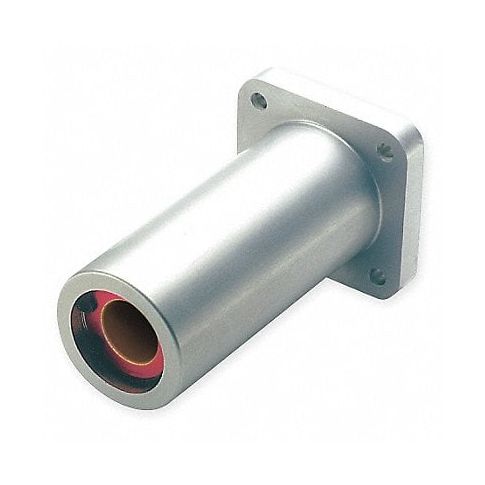

Flange Bearing 1.000 In Bore 5.625 In L MPN:DFP16
This bearing is suitable for applications where additional radial load support may be needed due to its design that includes a metal washer providing stability during use. With a bore size of 1 inch and an overall length of 5.625 inches, this product offers enough surface area to handle considerable amounts of force while maintaining precise alignment between rotating components for smoother motion and decreased wear rate over time. Its cost-effective nature makes it ideal for industrial or automotive usage where high volumes are involved reducing overall costs per unit while ensuring reliable performance. With such specifications, this 1 inch bore diameter x 5.625 inches long flange bearing is suitable for various operations requiring solid performance from a cost-effective solution.
Technical Specifications
- Bore Dia. (In.) 1 in
- Overall Width (In.) 2.75 in
- Overall Length (In.) 5.625 in
- Overall Height (In.) 2.75 in
- Body Width (In.) 2.25 in
- Flange Thickness (In.) 0.5 in
- Mounting Hole Dia. (In.) 0.2813 in
- Bolt Size 1/4 in
- Self-Alignment All Direction
- Dynamic Load Capacity (Lb.) 7,050
- Static Load Capacity (Lb.) 7,620
- Accelerated Speed 14 fps
- Steady State Speed 5 fps
- Temp. Range (F) 0 - 400
- Locking Type Retaining Ring
- Retaining Ring External
- Liner Frelon(TM) Gold
- Lubrication No Lubrication System
Manufacturer Details
- Manufacturer: Pbc Linear
- Condensed Mfg Number: DFP16
- MPN: DFP16
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Mounted Linear Bearings
- GDS Family Name: Linear Motion
- GDS Segment Name: Power Transmission
- UNSPSC: 31171506
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 06
- UNSPSC Commodity Name: Linear bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
