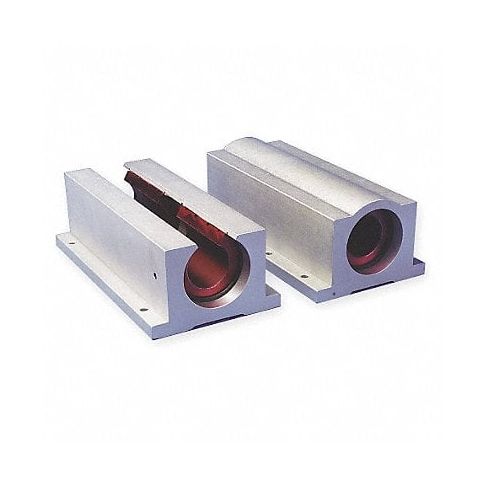

Pillow Block 0.375 In Bore 2.750 In L MPN:PW06
The robust design of the pillow block ball bearing comes with an outer dimension of 2.75 inches in length, offering extra support to applications requiring heavier loads and shock absorption capabilities within a relatively compact profile. Its interior bore measures at 0.375 inches that allow it to fit onto a shaft smoothly; this feature also contributes to its ability to provide reduced friction from axial movement while enhancing stability. Manufactured from high-grade materials that guarantee strength and durability in heavy-duty operations, these pillow blocks are ideal for use across various industries such as construction machinery or even general manufacturing environments where consistent and long-lasting performance is demanded without compromise on precision.
Technical Specifications
- Type Closed
- Bore Dia. (In.) 0.375 in
- Overall Width (In.) 1.75 in
- Overall Length (In.) 2.75 in
- Overall Height (In.) 0.938 in
- Body Width (In.) 1.125 in
- Flange Thickness (In.) 0.188 in
- Mounting Surface to Shaft Center (In.) 0.5 in
- Mounting Hole Dia. (In.) 0.1563 in
- Bolt Size #6
- Self-Alignment All Direction
- Dynamic Load Capacity (Lb.) 1,020
- Static Load Capacity (Lb.) 2,040
- Accelerated Speed 14 fps
- Steady State Speed 5 fps
- Temp. Range (F) 0 - 400
- Locking Type Retaining Ring
- Retaining Ring External
- Liner Frelon(TM) Gold
- Lubrication No Lubrication System
Manufacturer Details
- Manufacturer: Pbc Linear
- Condensed Mfg Number: PW06
- MPN: PW06
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Mounted Linear Bearings
- GDS Family Name: Linear Motion
- GDS Segment Name: Power Transmission
- UNSPSC: 31171506
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 06
- UNSPSC Commodity Name: Linear bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
