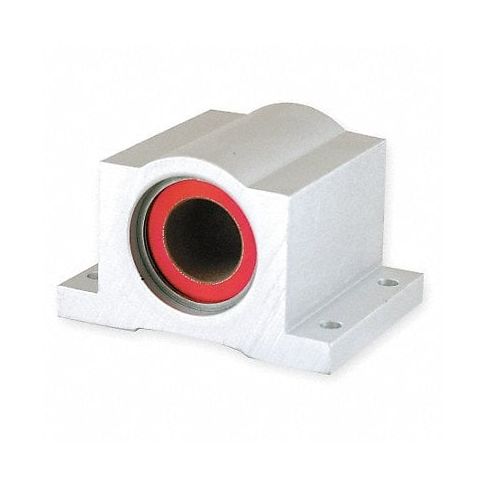

Pillow Block 0.750 In Bore 2.060 In L MPN:P12
Belleville disc springs are versatile components that offer a constant force loading and return ability even after compression. They can handle high loads while taking up minimal space, making them popular in the automotive, railway, aviation, electronics, and construction industries. The unique design provides low friction, corrosion resistance, compactness, and less wear compared to other options such as helical springs or flat washers. Their high load capacities make them suitable for use in various applications like suspensions, shock absorbers, bearings, hydraulic components, clamps, valves, and connectors. Overall, Belleville disc springs offer an economical and efficient solution to maintain tension or load control needs in numerous industries with their premium performance.
Technical Specifications
- Type Closed
- Bore Dia. (In.) 0.75 in
- Overall Width (In.) 2.75 in
- Overall Length (In.) 2.06 in
- Overall Height (In.) 1.75 in
- Body Width (In.) 1.875 in
- Flange Thickness (In.) 0.313 in
- Mounting Surface to Shaft Center (In.) 0.937 in
- Mounting Hole Dia. (In.) 0.1875 in
- Bolt Size #8
- Self-Alignment All Direction
- Dynamic Load Capacity (Lb.) 3,710
- Static Load Capacity (Lb.) 3,710
- Accelerated Speed 14 fps
- Steady State Speed 5 fps
- Temp. Range (F) 0 - 400
- Locking Type Retaining Ring
- Retaining Ring External
- Liner Frelon(TM) Gold
- Lubrication No Lubrication System
Manufacturer Details
- Manufacturer: Pbc Linear
- Condensed Mfg Number: P12
- MPN: P12
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483208040
- GDS Category Name: Mounted Linear Bearings
- GDS Family Name: Linear Motion
- GDS Segment Name: Power Transmission
- UNSPSC: 31171506
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 06
- UNSPSC Commodity Name: Linear bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
