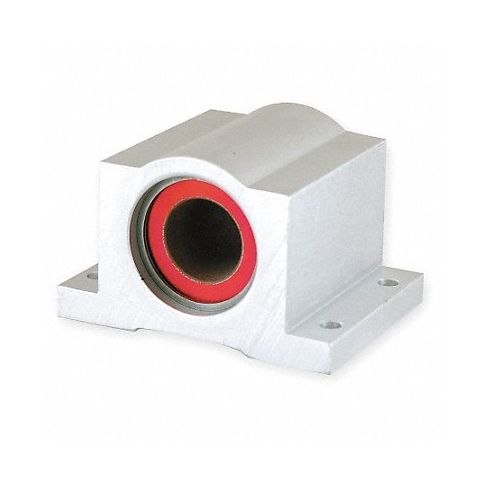

Pillow Block 0.500 In Bore 1.690 In L MPN:P08
A sturdy bearing assembly with a large 1.690 width, designed for reliable service in various industrial applications that demand consistent accuracy during operation, it is perfect for machinery maintenance or equipment upgrades alike. Key features include 0.500 bore diameter and two setscrews for adjustment purposes- ensuring proper alignment throughout all stages of function, securing its position into place securely; preventing potential wobbling, vibration issues -all of this while maintaining high rotational speed performance over prolonged periods. Its wide application range means it can be used across multiple industries including machinery & tools; construction, agriculture or military vehicles. For the person looking to get accurate linear motion or to replace faulty parts from their existing set up, it is essential equipment on hand- an indispensable asset when requiring uncompromised performance levels in motion management tasks.
Technical Specifications
- Type Closed
- Bore Dia. (In.) 0.5 in
- Overall Width (In.) 2 in
- Overall Length (In.) 1.69 in
- Overall Height (In.) 1.25 in
- Body Width (In.) 1.375 in
- Flange Thickness (In.) 0.25 in
- Mounting Surface to Shaft Center (In.) 0.687 in
- Mounting Hole Dia. (In.) 0.1563 in
- Bolt Size #6
- Self-Alignment All Direction
- Dynamic Load Capacity (Lb.) 1,950
- Static Load Capacity (Lb.) 1,950
- Accelerated Speed 14 fps
- Steady State Speed 5 fps
- Temp. Range (F) 0 - 400
- Locking Type Retaining Ring
- Retaining Ring External
- Liner Frelon(TM) Gold
- Lubrication No Lubrication System
Manufacturer Details
- Manufacturer: Pbc Linear
- Condensed Mfg Number: P08
- MPN: P08
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8482105012
- GDS Category Name: Mounted Linear Bearings
- GDS Family Name: Linear Motion
- GDS Segment Name: Power Transmission
- UNSPSC: 31171506
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 06
- UNSPSC Commodity Name: Linear bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
