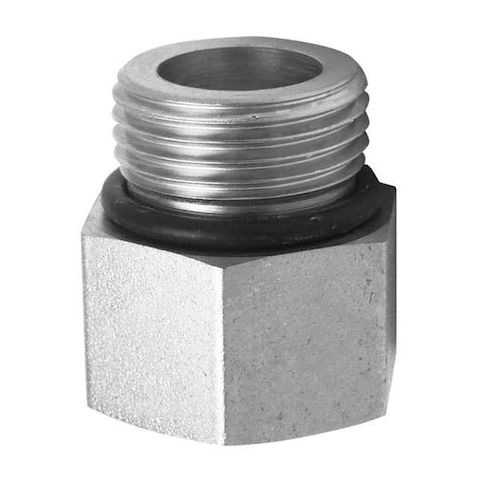

Pipe Adapter, 3/4 in Male SAE-ORB x 3/8 in Female NPT, 316 Stainless Steel, 6000 psi Max Pressure MPN:8-3/8 F5OG-SS

• The PARKER - 8-3/8 F5OG-SS is a stainless steel pipe adapter designed to join two components with differing connection types and sizes. Manufactured from 316 stainless steel, it is rated for corrosion resistance based on material specifications. The adapter features a male SAE-ORB connection of 3/4" nominal pipe size on Side A and a female NPT connection of 3/8" nominal pipe size on Side B, facilitating transitions between these standards. It is rated for operation within the specified pressure range of 6,000 psi within an operating temperature range of 30°F to 250°F. This pipe fitting includes a nitrile seal to help establish a leak-tight connection.

  Key Features:

  • - Basic material: 316 stainless steel, rating for corrosion resistance based on material specifications.
  • - Connection types: Side A is SAE-ORB male, 3/4" nominal pipe size
  • Side B is NPT female, 3/8" nominal pipe size.
  • - Maximum operating pressure: 6,000 psi.
  • - Temperature range: 30°F to 250°F.
  • - Includes a nitrile sealing component for leak-tight connections.
  • - Overall length: 1 1/4 in with a hex size of 7/8 in for wrenching.
  • - Complies with SAE J1926-1 and SAE J514 standards.
