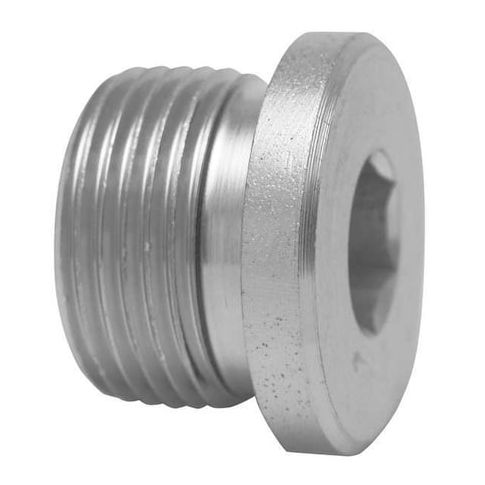

Hollow Hex Plug, M12 x 1-1/2 in, 316L Stainless Steel, Male Metric Thread, Nitrile Seal MPN:VSTI12X1.5ED71
The Parker VSTI12X1.5ED71 hollow hex plug is a versatile solution for closing pipe openings with axial bores, ideal for applications requiring controlled venting or insertion. Made from durable 316L stainless steel, this plug offers corrosion resistance and pressure containment, with a maximum operating pressure of 630 bar and a temperature range of 30 to 250 degrees Fahrenheit. Suitable for use in industrial settings, the VSTI12X1.5ED71 features a metric threaded connection, nitrile seal, and a 6 mm wrenching surface for easy installation and removal. Its compact design makes it perfect for a wide range of applications, including plumbing, HVAC, and industrial piping systems.
Top product features:
- Material: 316L stainless steel construction for durability and corrosion resistance.
- Fitting Shape: Hollow hex plug with axial bore for controlled venting or insertion.
- Metric threaded connection (M12 x 1 x 1.50) allows for secure attachment to fittings or sensing lines.
Top product applications:
- Pipe opening closure for venting or insertion purposes
- Fitting or sensing line insertion in industrial piping systems
- Pressure-containing applications requiring corrosion resistance
The PARKER - VSTI12X1.5ED71 is a hollow hex plug made from 316L stainless steel, primarily used to close pipe openings with an axial bore for venting or insertion purposes. It features a hexagonal external head that allows installation with a wrench and accommodates fittings or sensing lines through its internal passage. This plug has a metric threaded connection with a thread size of M12 x 1 x 1.50 and complies with ISO 9974 standards. It is rated for use in applications with corrosion resistance and pressure containment requirements within specified parameters, with a maximum operating pressure rated for operation up to 630 bar in accordance with product specifications and a temperature range rated for operation within 30 to 250 degrees Fahrenheit.
Key Features:
- - Material: 316L stainless steel construction for durability and corrosion resistance.
- - Fitting Shape: Hollow hex plug with axial bore for controlled venting or insertion.
- - Connection Type: Metric threaded connection (M12 x 1 x 1.50).
- - Seal: Includes a nitrile seal for leak prevention as specified in product parameters.
- - Hex Size: 6 mm wrenching surface for installation/removal.
- - Rated for Operation: Up to 630 bar in accordance with product specifications.
- - Temperature Range: Rated for operation within 30 to 250 degrees Fahrenheit.
- - Outside Diameter: 6 mm with an overall length of 5/8 inch and connection outside diameter of 43/64 inch.
- - Includes seal but no pre-applied thread sealant.
- - Number of Holes: 0 (solid plug except for the axial bore).
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.50
- Package Width: 6.00
- Package Height: 1.90
- Package Weight: 0.15
