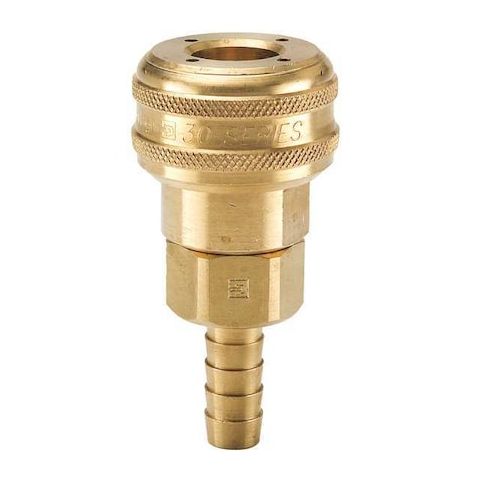

Coupler Body, Brass, Hose Barb, 110 cfm MPN:B36-7B
The Parker B36-7B brass quick connect hose coupling is designed for fast and reliable pneumatic connections. Its push-to-connect locking mechanism allows for tool-free connection and disconnection of hoses, reducing downtime and increasing productivity. Suitable for applications in various industries, this coupling features a tubular valve for air flow control and is rated for use in pneumatic systems with a maximum working pressure of 300 psi at 70°F. Its compatibility with industrial interchange standards and wide temperature range make it an ideal solution for a variety of pneumatic applications, from manufacturing to construction.
Top product features:
- Push-to-Connect locking mechanism for rapid, tool-free connection and disconnection of hoses
- Integrated tubular valve to control air flow
- Maximum working pressure of 300 psi at 70°F for safe operation in pneumatic applications
Top product applications:
- Pneumatic
- Industrial
- Hose Coupling
The PARKER - B36-7B is a brass quick connect hose coupling designed for pneumatic applications. It features a push-to-connect locking mechanism for rapid, tool-free connection and disconnection of hoses with a nominal hose inner diameter of 3/4 in. The fitting includes an integrated tubular valve to control air flow and is rated for use within specified pneumatic operating conditions (including maximum working pressure of 300 psi at 70°F) when properly installed with compatible components. It is compatible with specified industrial interchange standards when used with compatible fittings and hoses of the stated sizes and is rated for a maximum working pressure of 300 psi at 70°F.
Key Features:
- - Application: Pneumatic
- - Material: Brass
- - Connection Type: Hose Barb with Male fitting gender
- - Barb Size: 3/4 in
- - Hose Fitting Size: 3/4 in
- - For Hose I.D.: 3/4 in
- - Coupling Size: 1/2 in with socket coupling component
- - Coupling Locking Type: Push-to-Connect
- - Includes Valve: Yes, Tubular type
- - Max. Flow Rate: 3,114.85 liters per minute
- - Max. Working Pressure @ 70°F: 300 psi
- - Temperature Range: -40°F to 250°F
- - Seal Material: Nitrile
- - Overall Length: 3.63 in
- - Max. Outside Diameter: 1.5 in
- - Interchange Type: Industrial
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.70
- Package Width: 1.60
- Package Height: 1.60
- Package Weight: 0.65
