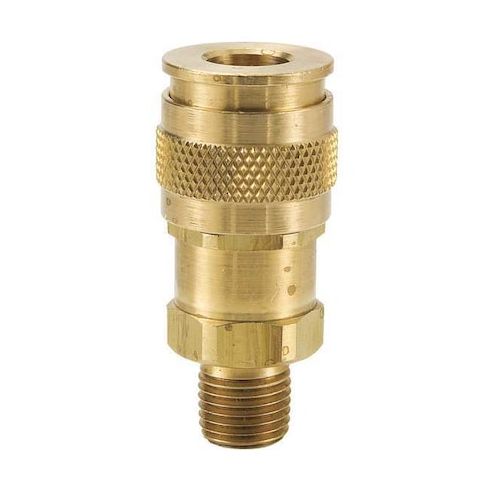

Coupler Body, Brass, MNPT, 1/4 In. Pipe MPN:UC-251-4MP
The Parker UC-251-4MP push-to-connect hose coupling is a reliable and efficient solution for pneumatic applications. Designed for easy connection and disconnection without tools, this coupling features a push-to-connect locking mechanism and is made from durable brass with nitrile seals. Suitable for use in pneumatic air line systems, it provides a sealed connection and is compatible with universal interchange standards. Ideal for a variety of applications, including industrial automation, medical equipment, and laboratory settings, this coupling offers a high flow rate and withstanding maximum working pressure of 150 psi, making it a valuable addition to any pneumatic system.
Top product features:
- Push-to-connect locking mechanism allows for connection and disconnection without tools
- Made from brass with nitrile seals for a sealed connection
- Includes a tubular valve for controlling flow
Top product applications:
- Air Line Use
- Pneumatic Applications
- Hydraulic Systems
The PARKER - UC-251-4MP is a push-to-connect hose coupling designed for pneumatic applications. It provides push-to-connect coupling for connection and disconnection without tools using a push-to-connect locking mechanism. Made from brass with nitrile seals, this coupling includes a tubular valve and is compatible with universal interchange standards. It provides a sealed connection intended for pneumatic air line use when properly installed. The fitting features a male hose connection with a 1/4 in size and an NPT thread type.
Key Features:
- - Coupling component: Socket
- - Body size: 1/4 in
- - Coupling size: 1/4 in
- - Hose fitting gender: Male
- - Hose fitting size: 1/4 in
- - Connection type: NPT
- - Includes valve: Yes (tubular type)
- - Coupling locking type: Push-to-Connect
- - Maximum flow rate: 707.92 liters per minute
- - Maximum working pressure at 70°F: 150 psi
- - Maximum outside diameter: 1 in
- - Overall length: 2.19 in
- - Seal material: Nitrile
- - Temperature range: -40°F to 250°F
- - Interchange type: Universal
- - Material: Brass
