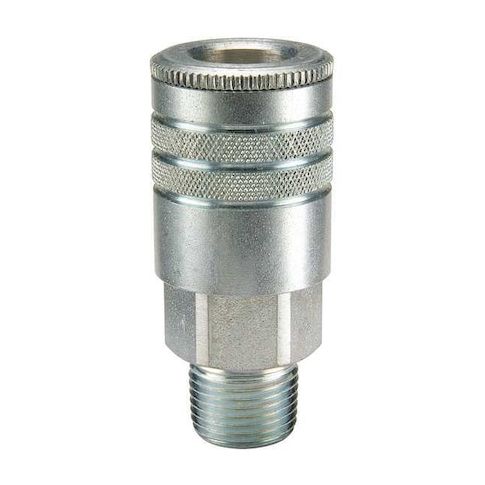

Coupler Body, Steel, MNPT, 3/8 In. Pipe MPN:24
For pneumatic applications, the PARKER - 24 hose coupling offers rapid connection and disconnection with sleeve locking. Constructed with a brass body and trivalent chrome finish, this coupling features a tubular valve for regulating airflow and is compatible with a 1/4 inch body size. It connects to a 3/8 inch hose fitting with female gender and NPT thread type, and is rated for a maximum flow rate of 1,415.84 L/min and a maximum working pressure of 300 psi at 70°F. Ideal for use in pneumatic systems, this coupling provides reliable performance in a wide range of temperatures and pressures.
Top product features:
- Sleeve locking for rapid connection and disconnection
- Brass construction with a trivalent chrome finish
- Tubular valve for regulating airflow
Top product applications:
- Pneumatic use
- Pneumatic applications
- Hose coupling for pneumatic applications
The PARKER - 24 is a hose coupling for pneumatic applications with sleeve locking for rapid connection and disconnection. It features a brass construction with a trivalent chrome finish and includes a tubular valve for regulating airflow. The coupling is compatible with a 1/4 inch body size (as specified by the ARO standard interchange) and connects to a 3/8 inch hose fitting with female gender and NPT thread type. The fitting is rated maximum flow rate: 1,415.84 L/min and a rated maximum working pressure: 300 psi at 70°F. It is rated operating temperature range: -40°F to 250°F and has nitrile seals for performance in stated pressure/temperature conditions.
Key Features:
- - Application: Pneumatic use
- - Material: Brass body with trivalent chrome finish
- - Connection Type: 3/8"-18 NPT, female hose fitting
- - Coupling Component: Socket with sleeve locking
- - Valve: Tubular valve included
- - Max. Flow Rate: 1,415.84 L/min
- - Max. Working Pressure: 300 psi at 70°F
- - Operating Temperature Range: -40°F to 250°F
- - Seal Material: Nitrile (see stated pressure/temperature ratings for performance conditions)
- - Overall Length: 1.81 inches
- - Max. Outside Diameter: 1.06 inches
- - Interchange Type: ARO standard
