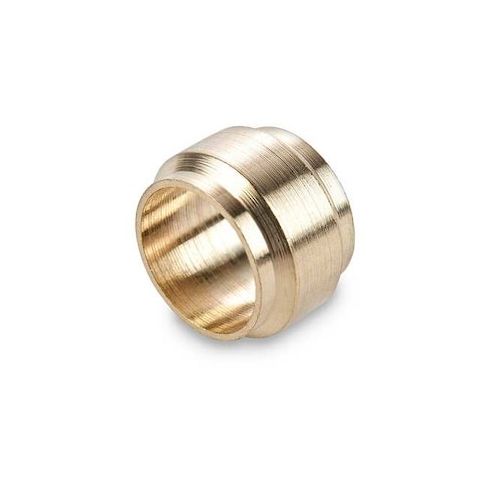

Ferrule, Brass, 22 mm MPN:0124 22 00
Ferrule, Brass, 22 mm
This Parker Ferrule is a high-quality compression fitting sleeve designed for use in various applications where a secure and reliable connection is required. Its brass construction ensures durability and resistance to corrosion, while its operating pressure and temperature ratings make it suitable for a wide range of industries, including chemical processing, oil and gas, and pharmaceutical. The ferrule is compatible with various tube materials, including brass, copper, polymer, and steel, and is designed for use in ATEX, PED, REACH, and RoHS/WEEE compliant systems. Its compact size and high-pressure rating make it an ideal choice for applications where space and reliability are crucial.
Top product features:
- Compression fitting sleeve for connecting tubes
- Suitable for use with various tube materials including brass, copper, polymer, and steel
- Operating pressure up to 300 psi and temperature up to 100 degrees Celsius
Top product applications:
- Brass pipe fittings for hydraulic systems
- Medical tubing connections for laboratory equipment
- Industrial hose fittings for high-pressure applications
Compression Fitting Sleeve, Fitting Material Brass, Material Grade C36000, Maximum Operating Pressure 300 psi, Maximum Operating Temperature 100 Degrees C, Overall Length 22 mm, Specific Fitting Shape Ferrule, System of Measurement Metric, Compatible Fitting Brands Parflex, Compatible Tube Outer Diameter 22 mm, Standards ATEX, PED, REACH, RoHS/WEEE, Compatible Fitting Connection Type Compression, Compatible Tube Material Brass, Copper, Polymer, Steel, Minimum Operating Temperature -40 Degrees F
Additional Information
- Country of Origin: ES
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.20
- Package Width: 1.20
- Package Height: 0.40
- Package Weight: 0.01
Product info last updated on February 27, 2026 1:17pm UTC
Category: Pipes, Valves and Fittings
