Elbow 90 SS CPIxF 1/2Inx1/4In MPN:8-4 DBZ-SS
SKU
226-CXG-5XPC3

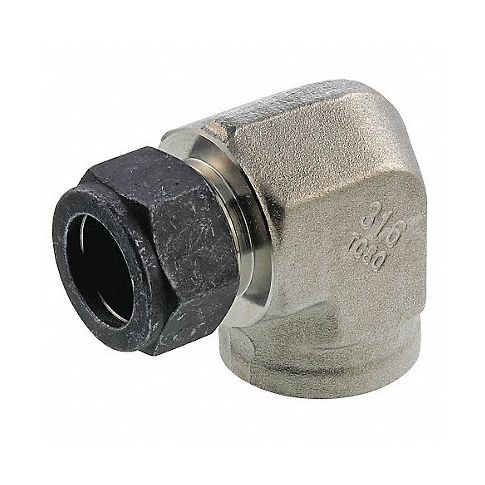

Elbow 90 SS CPIxF 1/2Inx1/4In
Our Premium Quality stainless steel elbow 90 degree, featuring threaded ends measuring CPI and FIP x 1/2in x 1/4in NPT , caters to users seeking strong and resilient components suitable for a wide range of applications - from plumbing fixtures and pipe installations to machinery construction and manufacturing systems. Its stainless steel composition ensures superior strength, corrosion resistance, and durability while maintaining aesthetic appeal. This component offers an ideal solution for professionals, DIY enthusiasts alike looking to achieve consistent and reliable results in challenging environments without compromising on quality or reliability.
With a compression design that allows for easy assembly this PARKER CPI™ female elbow provides a leaktight seal for high pressure, vibration, and vacuum in gas or liquid applications. Features a single-ferrule design creates a dynamic seal on tube and body, with close tolerance of nut and body dimensions for accurate tube alignment. Fitting won’t twist the tubing during installation so that the mechanical integrity of the tubing is preserved. Has a 4:1 safety factor with respect to the working pressure capabilities of the tubing used. Can be used with 304, 316, or 316L stainless steel tubing. For use in refineries, chemical processing, power generation, and instrument lines.
Technical Specifications
- Item Female Elbow, 90 Degrees
- Tube Fitting Material Stainless Steel
- Fitting Connection Type CPI(TM) x FNPT
- Pipe Size - Pipe Fitting 1/4 in
- Tube Size 1/2 in
- Hex Size 13/16 in
- Temp. Range -425 Degrees to 1200 Degrees F
Manufacturer Details
- Manufacturer: Parker
- Condensed Mfg Number: 84DBZSS
- MPN: 8-4 DBZ-SS
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: Y
- CA Prop 65 Warning Msg Scenario: 7
Classification Details
- Harmonization Code: 7307225000
- GDS Category Name: Compression Couplings Adapters Unions and Elbow
- GDS Family Name: Tube Fittings
- GDS Segment Name: Plumbing
- UNSPSC: 40142604
- UNSPSC Class ID: 26
- UNSPSC Commodity Name: Tube fittings
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Tube elbows
- UNSPSC Family ID: 14
- UNSPSC Family Name: Fluid and gas distribution
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
Shipping Details
- Not For Sale In: HI AK PR
