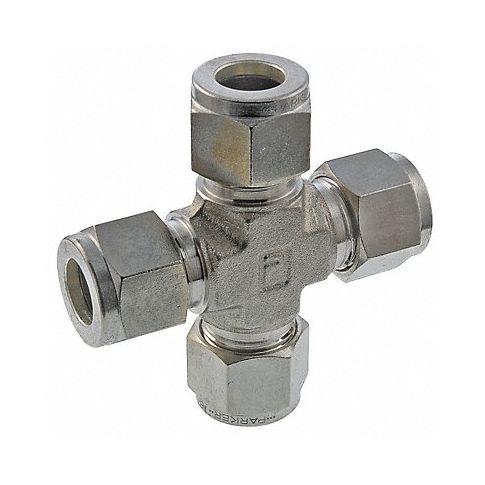

Union Cross 316SS ALOK 1/2In MPN:8ECR8-316

With a compression design that allows for easy assembly this PARKER A-LOK® union cross provides a leaktight seal for high pressure, vibration, and vacuum in gas or liquid applications. Features a double-ferrule design that allows the front ferrule to create a pressure seal on tube and body. Fitting won’t twist the tubing during installation so that the mechanical integrity of the tubing is preserved. Has a 4:1 safety factor with respect to the working pressure capabilities of the tubing used. Can be used with 304, 316, or 316L stainless steel tubing. For use in refineries, chemical processing, power generation, and instrument lines.

Technical Specifications

• Item Union Cross
• Tube Fitting Material 316 Stainless Steel
• Fitting Connection Type A-LOK(R) x A-LOK(R) x A-LOK(R) x A-LOK(R)
• Tube Size 1/2 in
• Hex Size 13/16 in
• Temp. Range -425 Degrees to 1200 Degrees F
• Standards ASME-SA-479, TYPE 316-SS, BS970, 316-S31, DIN 4401, ASTM A276 Type 316

Manufacturer Details

• Manufacturer: Parker
• Condensed Mfg Number: 8ECR8316
• MPN: 8ECR8-316

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: US
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 7307290090
• GDS Category Name: Compression Tees Wyes and Crosses
• GDS Family Name: Tube Fittings
• GDS Segment Name: Plumbing
• UNSPSC: 40142614
• UNSPSC Class ID: 26
• UNSPSC Commodity Name: Tube fittings
• UNSPSC Commodity ID: 14
• UNSPSC Commodity Name: Tube crosses
• UNSPSC Family ID: 14
• UNSPSC Family Name: Fluid and gas distribution
• UNSPSC Segment ID: 40
• UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components

Shipping Details

• Not For Sale In: HI AK PR
