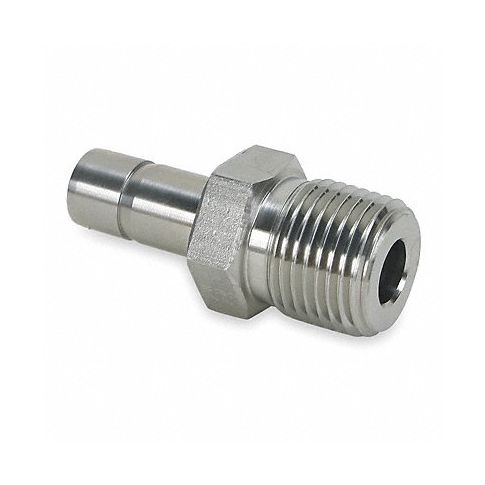

Tube Adptr 316 SS MxCPI Tube Stub 1/4In MPN:4-4 T2HF-SS
Tube Adptr 316 SS MxCPI Tube Stub 1/4In
Tube adapter constructed from top-grade stainless steel ensuring durable, corrosion-resistant performance perfect within marine or harsh environments. Measuring at 1/4in NPT male threads provide secure seal with standard pipe fittings without worry of leaks or loss of pressure. It caters to plumbing contractors, engineers seeking reliable cost-effective solutions for their tubing connection problems in diverse applications such as industrial plant operations, shipbuilding, and water treatment systems offering a perfect sealing fit for trouble-free operation!
With a compression design that allows for easy assembly this PARKER CPI™ tube end male adapter provides a leaktight seal for high pressure, vibration, and vacuum in gas or liquid applications. Features a single-ferrule design creates a dynamic seal on tube and body, with close tolerance of nut and body dimensions for accurate tube alignment. Fitting won’t twist the tubing during installation so that the mechanical integrity of the tubing is preserved. Has a 4:1 safety factor with respect to the working pressure capabilities of the tubing used. Can be used with 304, 316, or 316L stainless steel tubing. For use in refineries, chemical processing, power generation, and instrument lines.
Technical Specifications
- Item Tube End Male Adapter
- Tube Fitting Material 316 Stainless Steel
- Fitting Connection Type MNPT x CPI(TM) Tube Stub
- Pipe Size - Pipe Fitting 1/4 in
- Tube Size 1/4 in
- Hex Size 9/16 in
- Temp. Range -425 Degrees to 1200 Degrees F
- Standards ASME-SA-479, TYPE 316-SS, BS970, 316-S31, DIN 4401, ASTM A276 Type 316
Manufacturer Details
- Manufacturer: Parker
- Condensed Mfg Number: 44T2HFSS
- MPN: 4-4 T2HF-SS
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 7307290090
- GDS Category Name: Compression Couplings Adapters Unions and Elbow
- GDS Family Name: Tube Fittings
- GDS Segment Name: Plumbing
- UNSPSC: 40141719
- UNSPSC Class ID: 17
- UNSPSC Commodity Name: Hardware and fittings
- UNSPSC Commodity ID: 19
- UNSPSC Commodity Name: Plumbing adapters
- UNSPSC Family ID: 14
- UNSPSC Family Name: Fluid and gas distribution
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
Shipping Details
- Not For Sale In: HI AK PR
