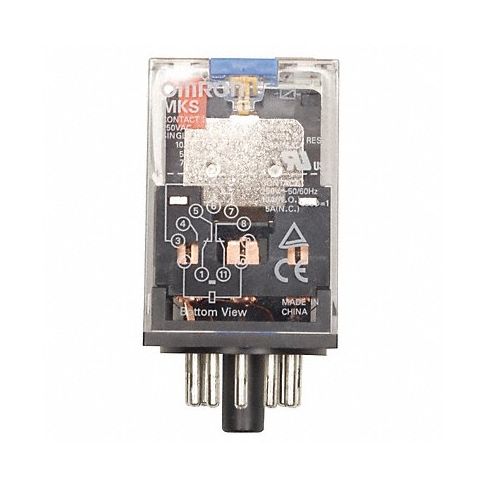

H7942 Gen Purpose Relay 8 Pin Octal 24VDC MPN:MKS2PINDC24
The Omron H7942 General Purpose Relay is a versatile plug-in relay with an octal base perfect for industrial automation and control systems. With its 8 pins and reversible base, it is simple to incorporate into existing circuits or applications. Designed for heavy duty usage, it features a lockable test button for safe testing of contact operation and durable construction that can handle harsh environments. The built-in LED indicator makes checking for relay activation quick and easy, while diode surge suppression and varistor protect against power fluctuations. With AC and DC ratings, this reliable relay can handle up to 10A of current at either 240V or 28V, making it suitable for use with a range of systems and equipment. Ideal for general purpose applications, the H7942 offers exceptional reliability, performance and value in a compact design that saves time and reduces costs.
Top product features:
- Exceptional plug-in reliability reduces downtime and maintenance costs
- Lockable test button enhances safety during testing and operation
- LED indicator provides easy checking of contact operation status
Top product applications:
- Control and automation of electrical appliances and equipment in factories and buildings
- Power management systems in transportation vehicles or remote locations
- Sensitive electronic devices that require precise timing or controlled power supply
Technical Specifications
- Item - Relay General Purpose Relay
- Coil Volts 24V DC
- AC Contact Rating - Relay 10A @ 240V
- DC Contact Rating - Relay 10A @ 28V
- Base Type - Plug In Relay Octal
- Number of Pins - Relay 8
- Contact Form - Relay DPDT
- Mounting - Relay Plug In
- Socket Code - Relay A
- Power Consumption - Relay 1.4 W
- Contact Material Silver Tin Indium
- Status Indicator LED and Mechanical Flag
- Push To Test Lockable
- Body Height - Relay 2.07 in
- Body Width - Relay 1.36 in
- Body Depth - Relay 1.36 in
- Overall Height - Relay 2.5 in
- HP @ 120V Not Rated
- HP @ 240V Not Rated
- Features Diode Surge Supression, Varistor Surge Suppression
- Standards CE Marked, TUV, UL Listed
Manufacturer Details
- Manufacturer: Omron
- Condensed Mfg Number: MKS2PINDC24
- MPN: MKS2PINDC24
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536490080
- GDS Category Name: Plug-In Relays
- GDS Family Name: Relays
- GDS Segment Name: Electrical
- UNSPSC: 39121515
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Switches and controls and relays and accessories
- UNSPSC Commodity ID: 15
- UNSPSC Commodity Name: General purpose relays
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
