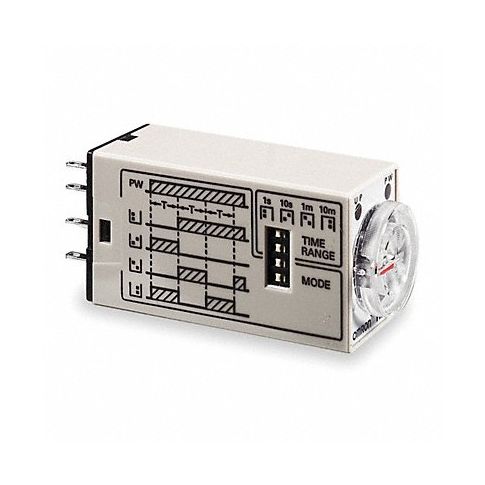

H7793 Time Delay Relay 24VAC 5A DPDT MPN:H3YN-2 AC24
H7793 Time Delay Relay 24VAC 5A DPDT
Introducing Omron H7793 Time Delay Relay 24VAC 5A DPDT - the perfect choice for timed control applications requiring precise timing. With an interval delay, on delay, and repeat cycle equal off/on times, this versatile relay offers a wide range of functions suitable for various automation needs. The plug-in base type design ensures easy installation, while the square base allows for secure connection to your device. Utilize this Omron relay for applications including machine operations, lighting control, and HVAC systems, among others. Get your Omron H3YN-2 AC24 today and enhance your automation experience!
Top product features:
- Multi-function timing relay for interval delay, on delay and repeat cycle equal off/on times
- Plug-in base type design for easy installation
- 5A @ 250V AC contact rating
Top product applications:
- Controlling motor speeds and timed operations in machines and appliances
- Turning lights on and off according to a schedule for energy-saving purposes
- Managing HVAC systems by turning the AC on and off at scheduled intervals
Buy Omron item #H3YN-2 AC24 to have a positive impact 📈 on our community of Service Disabled Veteran-Owned Business partners.
Technical Specifications
- Item - Relay Multi-Function Timing Relay
- Function - Timing Relay Interval Delay, On Delay, Repeat Cycle Equal Off/On Times
- Coil Volts 24V AC
- AC Contact Rating - Relay 5A @ 250V
- Base Type - Plug In Relay Square
- Number of Pins - Relay 8
- Mounting - Relay Plug In, Through Panel
- Contact Form - Relay DPDT
- Power Consumption - Relay 2.0 VA
- Adjustment Method - Timer Dip Switch, Rotary Knob
- Min. Time Setting - Timer 0.1 sec
- Max. Time Setting - Timer 10 min
- Status Indicator None
- Contact Material Silver Alloy
- Body Height - Relay 2.07 in
- Body Width - Relay 0.85 in
- Body Depth - Relay 1.1 in
- Overall Height - Relay 2.48 in
- Electrical Connection Socket
- Socket 4KN18
- Hz - Electrical 50 Hz, 60 Hz
Manufacturer Details
- Manufacturer: Omron
- Condensed Mfg Number: H3YN2AC24
- MPN: H3YN-2 AC24
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ID
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536490050
- GDS Category Name: Time-Delay Relays
- GDS Family Name: Relays
- GDS Segment Name: Electrical
- UNSPSC: 39121519
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Switches and controls and relays and accessories
- UNSPSC Commodity ID: 19
- UNSPSC Commodity Name: Time relays
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 3, 2024 10:11pm UTC
