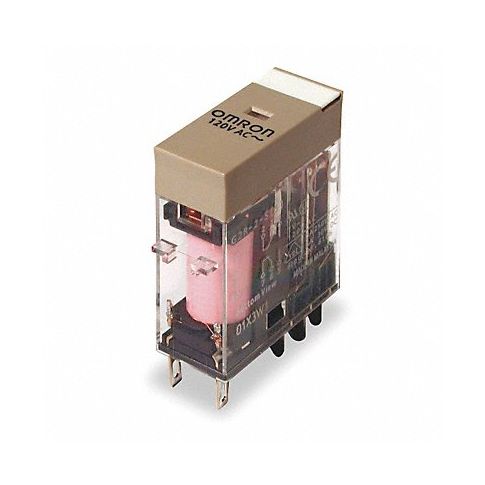

H8072 Gen Purpose Relay 8 Pin Square 120VAC MPN:G2R-2-S-AC120(S)
The H8072 general purpose relay features an 8-pin square format capable of handling heavy load currents suitable for various switching tasks within an operational environment. Rated at 120VAC, it can support a nominal coil voltage of 6,40VDC while using minimal power to initiate the load contact operation; ideal for circuits dealing with low signal energizing where low drop-out is paramount. Its contact arrangement allows up to five independent paths ensuring diversified routing scenarios can be achieved depending on design requirement making it compatible with various industrial applications - great asset within complex systems needing compact components integrating seamlessly; available packaged separately or pre-assembled offering flexibility in purchase quantities and usage.
Technical Specifications
- Item - Relay General Purpose Relay
- Coil Volts 120V AC
- AC Contact Rating - Relay 5A @ 240V
- DC Contact Rating - Relay 5A @ 28V
- Base Type - Plug In Relay Square
- Number of Pins - Relay 8
- Contact Form - Relay DPDT
- Mounting - Relay Plug In
- Socket Code - Relay J
- Power Consumption - Relay 0.9 VA
- Contact Material Cadmium Free
- Status Indicator Mechanical Flag
- Push To Test Manual
- Body Height - Relay 1.4 in
- Body Width - Relay 0.51 in
- Body Depth - Relay 1.14 in
- Overall Height - Relay 1.69 in
- HP @ 120V 1/6 hp
- HP @ 240V 1/6 hp
- Standards CSA Certified, UL Listed
Manufacturer Details
- Manufacturer: Omron
- Condensed Mfg Number: G2R2SAC120S
- MPN: G2R-2-S-AC120(S)
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MY
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536490080
- GDS Category Name: Plug-In Relays
- GDS Family Name: Relays
- GDS Segment Name: Electrical
- UNSPSC: 39121514
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Switches and controls and relays and accessories
- UNSPSC Commodity ID: 14
- UNSPSC Commodity Name: Power relays
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
