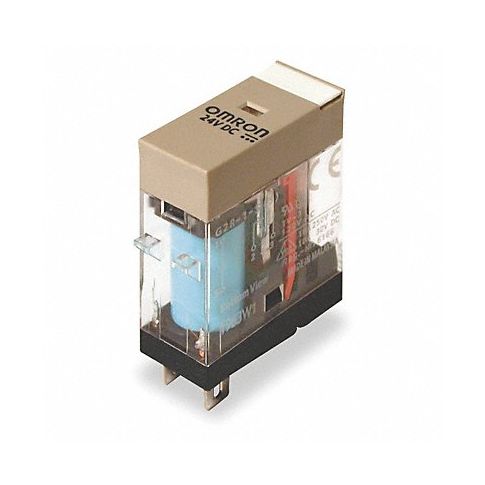

H8070 Gen Purpose Relay 5 Pin Square 24VDC MPN:G2R-1-S-DC24(S)
H8070 Gen Purpose Relay 5 Pin Square 24VDC
Switch with ease using our high-performance H8070 General Purpose Relay, engineered for versatile applications requiring stable performance. Capable of handling up to 16A of current and 120V DC voltage, this relay is suitable for both AC and DC circuits. Its compact design and lightweight construction make it easy to install in tight spaces, while its rugged components guarantee reliable operation even under harsh conditions. From automotive electronics to industrial control systems, our H8070 General Purpose Relay is the ideal solution for your switching needs!
Slim and space-saving power plug in relay with built-in mechanical flag indicator. Provides high switching power and has manual push to test. Designed with cadmium-free contact material and ia suitable for general-duty applications. Includes standard socket-mount or solder terminals and nameplate.
Technical Specifications
- Item - Relay General Purpose Relay
- Coil Volts 24V DC
- AC Contact Rating - Relay 10A @ 240V
- DC Contact Rating - Relay 10A @ 28V
- Base Type - Plug In Relay Square
- Number of Pins - Relay 5
- Contact Form - Relay SPDT
- Mounting - Relay Plug In
- Socket Code - Relay H
- Power Consumption - Relay 0.5 W
- Contact Material Cadmium Free
- Status Indicator Mechanical Flag
- Push To Test Manual
- Body Height - Relay 1.4 in
- Body Width - Relay 0.51 in
- Body Depth - Relay 1.14 in
- Overall Height - Relay 1.6 in
- HP @ 120V 1/3 hp
- HP @ 240V 1/2 hp
- Standards CSA Certified, UL Listed
Manufacturer Details
- Manufacturer: Omron
- Condensed Mfg Number: G2R1SDC24S
- MPN: G2R-1-S-DC24(S)
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MY
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536410050
- GDS Category Name: Plug-In Relays
- GDS Family Name: Relays
- GDS Segment Name: Electrical
- UNSPSC: 39121514
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Switches and controls and relays and accessories
- UNSPSC Commodity ID: 14
- UNSPSC Commodity Name: Power relays
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 3, 2024 10:11pm UTC
Category: Relays
