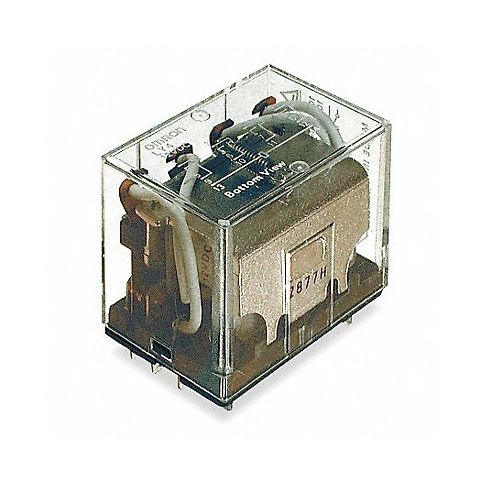

H8031 Gen Purpose Relay 14 Pin Square 24VAC MPN:LY4-AC24
H8031 Gen Purpose Relay 14 Pin Square 24VAC
Introducing the Omron H8031 General Purpose Relay, ideal for controlling various electrical appliances in a wide range of applications. With a compact square design and 14 pins, this AC-rated relay has a coil voltage of 24V and can handle up to 10A of current at both 120V AC and 24V DC. The base type is designed as a plug-in connector for ease of installation. Use it to automate devices like motors, fans, lights, and pumps with precision timing and control. Improve efficiency and safety in your system with Omron's trusted quality and reliability at an affordable price.
Top product features:
- 14 Pins: Allows for versatile wiring and connection options
- AC and DC Ratings: Suitable for various types of electrical systems
- Compact Square Design: Easy to install in tight spaces
Top product applications:
- Automating electrical appliances and machinery
- Controlling lighting and motor systems
- Regulating power to equipment and devices
Buy Omron item #LY4-AC24 to have a positive impact 📈 on our community of Service Disabled Veteran-Owned Business partners.
Technical Specifications
- Item - Relay General Purpose Relay
- Coil Volts 24V AC
- AC Contact Rating - Relay 10A @ 120V
- DC Contact Rating - Relay 10A @ 24V
- Base Type - Plug In Relay Square
- Number of Pins - Relay 14
- Contact Form - Relay 4PDT
- Mounting - Relay Plug In
- Socket Code - Relay F
- Power Consumption - Relay 2.0 VA
- Contact Material Silver Alloy
- Status Indicator No
- Push To Test Manual
- Body Height - Relay 1.42 in
- Body Width - Relay 1.63 in
- Body Depth - Relay 1.1 in
- Overall Height - Relay 1.69 in
- HP @ 120V 1/10 hp
- HP @ 240V 1/3 hp
- Features Arc Barrier Equipped, High Dielectric Strength (2000V AC), Long Dependable Service Life Assured By Ag-Alloy Contacts
- Standards UL508
Manufacturer Details
- Manufacturer: Omron
- Condensed Mfg Number: LY4AC24
- MPN: LY4-AC24
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ID
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536490080
- GDS Category Name: Plug-In Relays
- GDS Family Name: Relays
- GDS Segment Name: Electrical
- UNSPSC: 39121515
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Switches and controls and relays and accessories
- UNSPSC Commodity ID: 15
- UNSPSC Commodity Name: General purpose relays
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 3, 2024 9:53pm UTC
