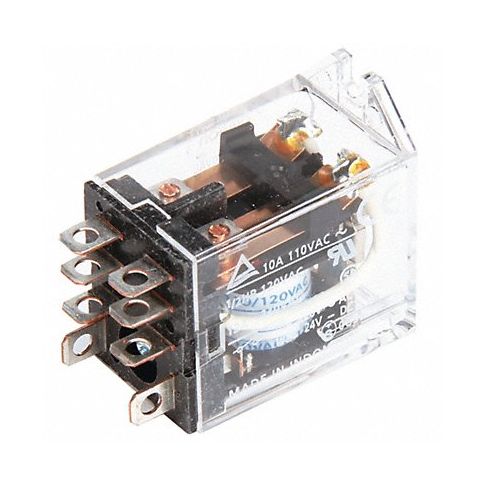

H8010 Flange Relay 24VAC 8 Pins 10A @ 120V AC MPN:LY2F-AC24
H8010 Flange Relay 24VAC 8 Pins 10A @ 120V AC
Introducing the H8010 Flange Relay from Omron - an essential component for controlling electrical circuits with high efficiency! Designed for AC or DC voltage systems, this flange mount relay delivers a powerful performance with its ability to manage up to 10 amps of current at 24 volts. Its versatile applications range from industrial automation and equipment control to HVAC systems, making it the perfect fit for various industries. Experience the benefits of reduced energy consumption, noise, and size by replacing traditional relays with this advanced device. Don't compromise on quality - choose Omron's H8010 Flange Relay today and enhance your electrical circuit management!
Top product features:
- AC contact rating Relay can handle up to 10 amps of current at 120 volts for reliable and efficient power management
- DC contact rating Relay delivers 10 amps of current at 24 volts, suitable for various DC systems
- Flange mount design Easy installation and space-saving, the relay provides a secure fit in any environment
Top product applications:
- Industrial automation and control systems for manufacturing and production processes, where reliable power management is essential to ensure optimal performance
- HVAC (heating, ventilation and air conditioning) systems in buildings or commercial spaces, to manage airflow and temperature regulation for comfort and energy efficiency
- Electrical equipment and appliances like motors, compressors, and generators that require precise voltage and current control, to ensure safe and efficient operation
Buy Omron item #LY2F-AC24 to have a positive impact 📈 on our community of Service Disabled Veteran-Owned Business partners.
Technical Specifications
- Item - Relay Flange Mount Relay
- Coil Volts 24V AC
- AC Contact Rating - Relay 10A @ 120V
- DC Contact Rating - Relay 10A @ 24V
- Number of Pins - Relay 8
- Contact Form - Relay DPDT
- Mounting - Relay Top Flange
- Power Consumption - Relay 1.1 VA
- Socket Code - Relay J
- Contact Material Silver Alloy
- Status Indicator No
- Push To Test Manual
- Electrical Connection 0.200 in Solder Terminals
- Body Height - Relay 1.4 in
- Body Width - Relay 0.89 in
- Body Depth - Relay 1.14 in
- Overall Height - Relay 1.65 in
- HP @ 120V 1/3 hp
- Features Arc Barrier Equipped, High Dielectric Strength (2, 000 V AC)
Manufacturer Details
- Manufacturer: Omron
- Condensed Mfg Number: LY2FAC24
- MPN: LY2F-AC24
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ID
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536490080
- GDS Category Name: Flange Mounted Relays
- GDS Family Name: Relays
- GDS Segment Name: Electrical
- UNSPSC: 39121515
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Switches and controls and relays and accessories
- UNSPSC Commodity ID: 15
- UNSPSC Commodity Name: General purpose relays
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
