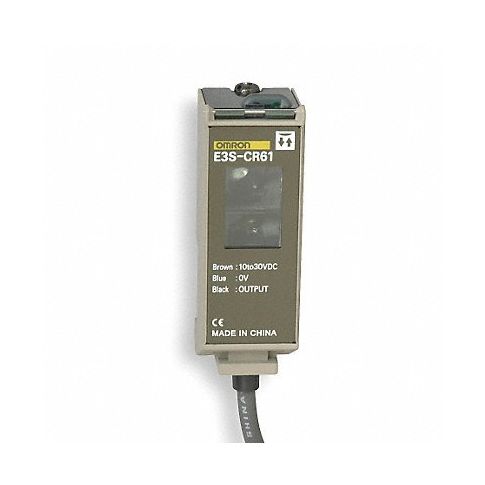

Photoelectric Sensor Rectangl Reflective MPN:E3S-CR61

This long-range metal body sensor offers mutual interference protection, vibration resistance, and shock resistance.

Technical Specifications

• Style - Rectangular Photoelectric Sensor Rectangular Photoelectric Sensor
• Item Photoelectric Sensor
• Shape - Rectangular Photoelectric Sensor Rectangular
• Sensing Method - Rectangular Photoelectric Sensor Retroreflective
• Power Requirement - Rectangular Photoelectric Sensor 10 to 30V DC
• Output Circuit Type - Rectangular Photoelectric Sensor NPN/PNP
• Operating Mode - Photoelectric Sensor Selectable Light On/Dark On
• Max. Sensing Distance - Rectangular Photoelectric Sensor 3.0 m
• Electrical Connection - Rectangular Photoelectric Sensor 2m Cable
• Height - Rectangular Photoelectric Sensor 50 mm
• Width - Rectangular Photoelectric Sensor 20 mm
• Depth - Rectangular Photoelectric Sensor 20 mm
• Min. Object Size 75mm dia Opaque
• Max. Load Current 40 mA
• Response Time 1.0 msec
• NEMA Rating 4X, 6P
• IP Rating 67
• Body Material Die Cast Zinc
• Light Source Red LED
• Features Mutual Interference Prevention, Output Short Circuit Protection, Power Supply Reverse Polarity Protection, Sensitivity Adjustment
• Operating Temp. Range -25 Degrees to 55 Degrees C
• Standards CE Approval

Manufacturer Details

• Manufacturer: Omron
• Condensed Mfg Number: E3SCR61
• MPN: E3S-CR61

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: CN
• CA Prop 65 Wht Label: N

Classification Details

• GDS Category Name: Rectangular Photoelectric Sensors
• GDS Family Name: Switches
• GDS Segment Name: Electrical
• UNSPSC: 39121528
• UNSPSC Class ID: 15
• UNSPSC Commodity Name: Switches and controls and relays and accessories
• UNSPSC Commodity ID: 28
• UNSPSC Commodity Name: Photoelectric sensors
• UNSPSC Family ID: 12
• UNSPSC Family Name: Electrical equipment and components and supplies
• UNSPSC Segment ID: 39
• UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies

Shipping Details

• Not For Sale In: HI AK PR
