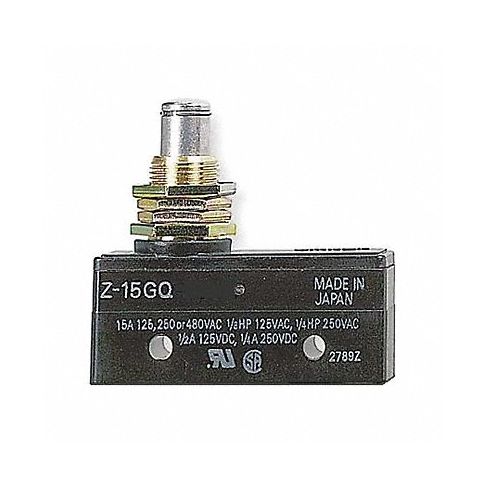

Snap Switch 15A SPDT Panel Mount Plunger MPN:Z-15GQ

This snap action switch features a panel mount plunger actuator and phenolic housing.

Technical Specifications

• Snap Action Switch Type Industrial Snap Action Switch
• Basic Actuator Type - Snap Action Switch Plunger
• Actuator Type - Snap Action Switch Panel Mount, Plunger
• Item Industrial Snap Action Switch
• AC Contact Rating - Snap Action Switch 15A @ 480V
• DC Contact Rating - Snap Action Switch 15A @ 14V
• Contact Form- Switches SPDT
• Height - Snap Action Switch 0.89 in
• Width - Snap Action Switch 1.94 in
• Depth - Snap Action Switch 0.69 in
• Electrical Connection - Snap Action Switch Solder Lug
• Mounting Dimension - Snap Action Switch 1.00 in Centers
• Number of Circuits - Snap Action Switch 1
• Watertight - Snap Action Switch No
• Series Z
• Operating Force 19.06 oz
• Max. Pretravel 0.016 in
• Release Force 4.02 oz
• Differential Travel 0.002 in
• Over Travel 0.217 in
• Operating Temp. Range -13 Degrees to 176 Degrees F
• Housing Material Phenolic
• Standards UL/ CSA/ EN 61058-1

Manufacturer Details

• Manufacturer: Omron
• Condensed Mfg Number: Z15GQ
• MPN: Z-15GQ

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: ID
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8536509040
• GDS Category Name: Snap Action Switches
• GDS Family Name: Switches
• GDS Segment Name: Electrical
• UNSPSC: 39121505
• UNSPSC Class ID: 15
• UNSPSC Commodity Name: Switches and controls and relays and accessories
• UNSPSC Commodity ID: 05
• UNSPSC Commodity Name: Snap switches
• UNSPSC Family ID: 12
• UNSPSC Family Name: Electrical equipment and components and supplies
• UNSPSC Segment ID: 39
• UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies

Shipping Details

• Not For Sale In: HI AK PR
