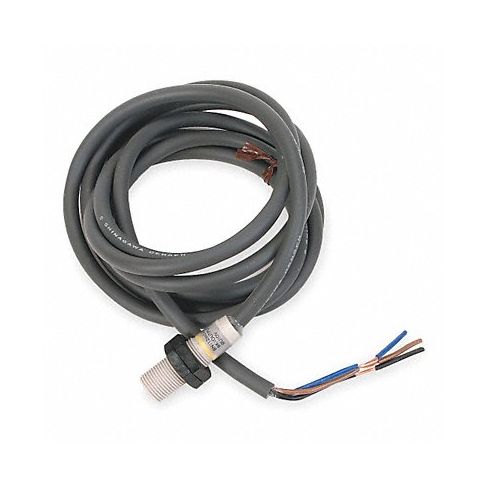

Proximity Sensor Inductive 18mm SCR NC MPN:E2F-X5Y2-US

This plastic, cylindrical inductive prox sensor features a threaded plastic body and rugged, watertight housing. The design is intended to offer good chemical resistance and withstand washdown procedures.

Technical Specifications

• Item Cylindrical Proximity Sensor
• Proximity Sensing Method Inductive
• Proximity Sensor Diameter 18.0 mm
• Proximity Sensor Power Requirement 20 to 264V AC
• Shielded / Unshielded Shielded
• Proximity Sensor Operating Frequency 25 Hz
• Proximity Sensor Output Circuit Type 2 Wire
• Max. Detecting Distance 5.0 mm
• Proximity Sensor Electrical Connection 2m Cable
• Basic Proximity Sensor Case Material Plastic
• Output Mode NC
• NEMA Rating 1, 12, 13, 3, 4, 6
• IP Rating 67
• Case Material ABS
• Length 41 mm
• Operating Temp. Range -13 Degrees to 158 Degrees F
• Max. Current Load 300mA
• Description/Special Features LED Indication
• Standards CE Compliance, CSA Certified, UL Listed
• Includes Instruction Manual

Manufacturer Details

• Manufacturer: Omron
• Condensed Mfg Number: E2FX5Y2US
• MPN: E2F-X5Y2-US

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: CN
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8536507000
• GDS Category Name: Cylindrical Proximity Sensors and Switches
• GDS Family Name: Switches
• GDS Segment Name: Electrical
• UNSPSC: 41111926
• UNSPSC Class ID: 19
• UNSPSC Commodity Name: Indicating and recording instruments
• UNSPSC Commodity ID: 26
• UNSPSC Commodity Name: Proximity sensors
• UNSPSC Family ID: 11
• UNSPSC Family Name: Measuring and observing and testing instruments
• UNSPSC Segment ID: 41
• UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment

Shipping Details

• Not For Sale In: HI AK PR
