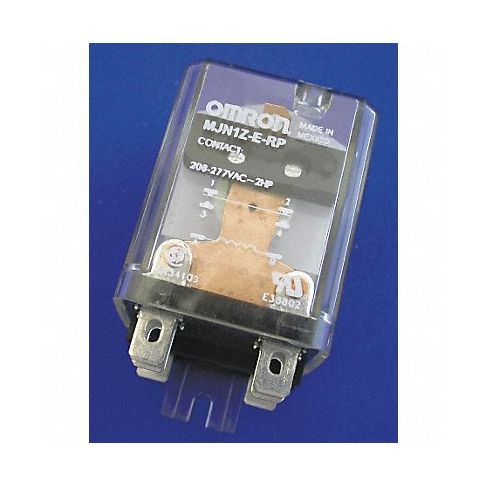

Flange Relay 24VAC 6 Pins 15A @ 600V AC MPN:MJN1Z-E-RP-AC24

Technical Specifications

• Item - Relay Flange Mount Relay
• Coil Volts 24V AC
• AC Contact Rating - Relay 15A @ 600V
• DC Contact Rating - Relay 30A @ 28V
• Number of Pins - Relay 6
• Contact Form - Relay SPDT
• Mounting - Relay Side Flange
• Power Consumption - Relay 1.7 VA
• Contact Material Silver Alloy
• Status Indicator No
• Electrical Connection 0.187 in Solder Terminals
• Body Height - Relay 1.9 in
• Body Width - Relay 1.53 in
• Body Depth - Relay 1.4 in
• Overall Height - Relay 2.9 in
• HP @ 120V 1 hp
• HP @ 240V 1 1/2 hp
• Features Interlocked Frame and Contact Block Prevent Contact Misalignment During Plug-in, Rugged Power Driver Offers Superior 3/16 in Through-air and 3/8 in Over-surface Spacing
• Standards CSA Certified, UL Listed

Manufacturer Details

• Manufacturer: Omron
• Condensed Mfg Number: MJN1ZERPAC24
• MPN: MJN1Z-E-RP-AC24

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: CN
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8536490080
• GDS Category Name: Flange Mounted Relays
• GDS Family Name: Relays
• GDS Segment Name: Electrical
• UNSPSC: 39121542
• UNSPSC Class ID: 15
• UNSPSC Commodity Name: Switches and controls and relays and accessories
• UNSPSC Commodity ID: 42
• UNSPSC Commodity Name: Solid state relays
• UNSPSC Family ID: 12
• UNSPSC Family Name: Electrical equipment and components and supplies
• UNSPSC Segment ID: 39
• UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies

Shipping Details

• Not For Sale In: HI AK PR
