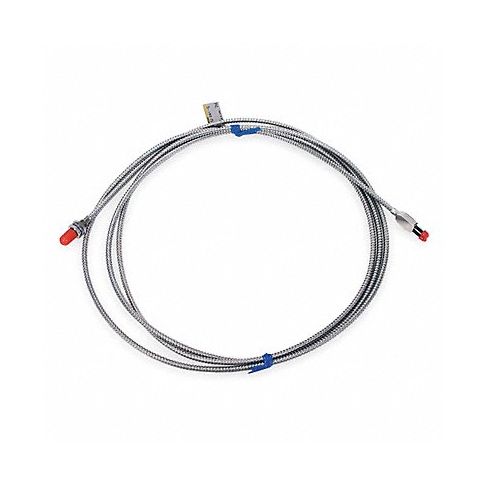

Fbr Optic Cable Diffuse 6-9/16 ft 163mm MPN:E32-D61S
The Omron High Temperature Fiber Optic Cable is designed specifically for use in reciprocating machinery such as robots, where flexibility is key. Made from durable materials, this cable operates effectively within a high temperature range between -60F and 660F. The cable features a stainless steel tubing that ensures the maintainance of complex shapes, making it an ideal choice for various applications including automation, robotics and many more. With its diffuse sensing method, this cable detects even small objects with a minimum size of 0.005mm dia and offers an enhanced resolution for improved accuracy. Overall, the Omron High Temperature Fiber Optic Cable provides superior performance in challenging environments, making it an essential tool for any machinery operator or manufacturer looking to upgrade their processes.
Top product features:
- High temperature range (60F to 660F)
- Stainless steel tubing for maintaining complex shapes
- Flexibility for reciprocating machinery like robots
Top product applications:
- Use in reciprocating machinery such as robots
- Operate in high temperature environments (60F to 660F)
- Detect small objects with a minimum size of 0.005mm dia
Technical Specifications
- Item High Temperature Fiber Optic Cable
- Sensing Method Diffuse
- Cable Length 6 9/16 ft
- Max. Sensing Distance 63 mm
- Min. Object Size 0.005mm dia
- Sheath Stainless Steel
- Fiber Material Core Glass
- Temp. Range -60 Degrees to 660 Degrees F
- Cable Dia. 4 mm
- Tip Type M6 Screw
- Standards IEC Approval, UL Listed
Manufacturer Details
- Manufacturer: Omron
- Condensed Mfg Number: E32D61S
- MPN: E32-D61S
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8544700000
- GDS Category Name: Photoelectric Sensor Cables
- GDS Family Name: Switches
- GDS Segment Name: Electrical
- UNSPSC: 26121607
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Electrical cable and accessories
- UNSPSC Commodity ID: 07
- UNSPSC Commodity Name: Fiber optic cable
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical wire and cable and harness
- UNSPSC Segment ID: 26
- UNSPSC Segment Name: Power Generation and Distribution Machinery and Accessories
Shipping Details
- Not For Sale In: HI AK PR
