Interlock Switch 1NO/1NC ABS MPN:44507-1660
Interlock Switch 1NO/1NC ABS

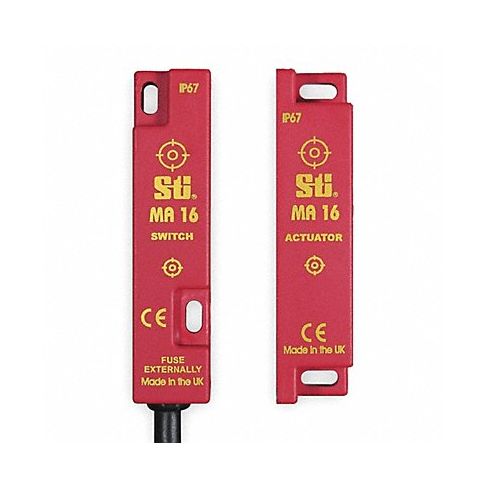

The Omron Interlock Switch MA-16 is designed to provide maximum safety in industrial environments. This magnetically actuated switch is fully encapsulated for added durability, making it suitable for harsh or wet environments. It's ideal for use as a machine guard and can be installed easily in tight spaces thanks to its compact size. The Omron MA-16 Series provides automatic safety contact separation when the actuator moves out of its operating range, reducing the risk of injury to personnel. With its rugged construction and reliable operation, the Omron Interlock Switch MA-16 is a trusted solution for manufacturers looking to enhance their facility's safety measures.
Top product features:
- Fully encapsulated construction for use in harsh or wet environments
- Automatic safety contact separation when actuator moves out of operating range
- Rugged construction and reliable operation
Top product applications:
- Machine guarding in industrial environments
- Safety interlock systems on machinery
- Hazardous location installations
This magnetically actuated safety interlock switch is completely encapsulated for use in harsh or wet environments. It is designed to operate on a machine guard within a specified operating rage. When the actuator moves out of its operating range, it automatically opens its safety contacts.
Technical Specifications
- Item Magnetically Actuated Safety Interlock Switch
- Series MA-16
- Switch Width 0.75 in
- Switch Height 3.31 in
- Switch Depth 0.67 in
- Contact Form 1NO/1NC
- AC Contact Rating 2A @ 230V
- Operating Temp. Range 14 Degrees to 131 Degrees F
- Termination Type Bare Wire
- Cable Length 9.8 ft
- NEMA Rating 6
- IP Rating IP67
- Actuator Width 0.75 in
- Actuator Height 3.25 in
- Actuator Depth 0.75 in
- On Sensing Distance 0.28 in
- Off Sensing Distance 0.98 in
- Body Material ABS
- Standards CSA, EC, UL
- Includes Actuator
Manufacturer Details
- Manufacturer: Omron
- Condensed Mfg Number: 445071660
- MPN: 44507-1660
Label Details
- Hazardous Material: Y
- Green Material Flag: N
- Country of Origin: GB
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536507000
- GDS Category Name: Magnetically Actuated Safety Interlock Switches
- GDS Family Name: Switches
- GDS Segment Name: Electrical
- UNSPSC: 39121509
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Switches and controls and relays and accessories
- UNSPSC Commodity ID: 09
- UNSPSC Commodity Name: Limit switches
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on January 19, 2024 4:53pm UTC
Category: Switches
