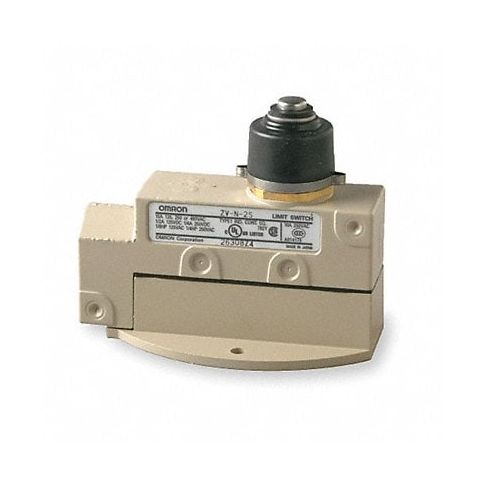

Enclosed Limit Switch MPN:ZVN2S

This general purpose, enclosed limit switch is engineered to offer both high breaking capacity and high durability.

Technical Specifications

• Limit Switch Style General Purpose Limit Switch
• Basic Actuator Style - Limit Switch Plunger
• Actuator Style - Limit Switch Plunger
• Actuator Location - Limit Switch Top
• AC Contact Rating - Limit Switch 10A @ 480V
• DC Contact Rating - Limit Switch Not Rated
• Contact Form- Switches SPDT
• Body Height - Limit Switch 1.3 in
• Body Width - Limit Switch 3.39 in
• Body Depth - Limit Switch 1.0 in
• Boot Sealed Actuator - Limit Switch Yes
• Mounting - Limit Switch Bottom Flange
• Body Style - Limit Switch Micro
• NEMA Rating 1, 2, 3, 4, 5
• Wiring Entry G1/2
• Electrical Connection Screw Terminals
• IP Rating 65
• Movement Top
• Travel Maximum Pre-Travel N/A, Minimum Over-Travel N/A
• Series ZV
• Operating Temp. Range 14 Degrees to 176 Degrees F
• Mounting Hole Pattern - Limit Switch 2 Hole Horizontal
• Mounting Hole Spacing - Limit Switch 1.63 in
• Mounting Hole - Limit Switch (2) 0.17 in dia
• Stem Thread - Limit Switch No Stem
• Body Material Aluminum
• Operating Force 7.9 N-m
• Standards CSA, UL

Manufacturer Details

• Manufacturer: Omron
• Condensed Mfg Number: ZVN2S
• MPN: ZVN2S

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: JP
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8536509055
• GDS Category Name: Limit / Interlock Switches
• GDS Family Name: Switches
• GDS Segment Name: Electrical
• UNSPSC: 39121509
• UNSPSC Class ID: 15
• UNSPSC Commodity Name: Switches and controls and relays and accessories
• UNSPSC Commodity ID: 09
• UNSPSC Commodity Name: Limit switches
• UNSPSC Family ID: 12
• UNSPSC Family Name: Electrical equipment and components and supplies
• UNSPSC Segment ID: 39
• UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies

Shipping Details

• Not For Sale In: HI AK PR
