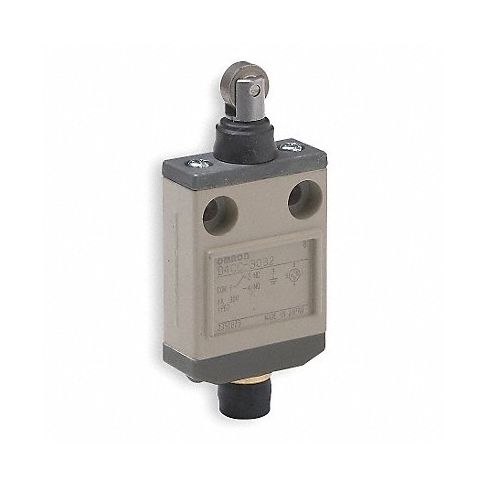

Miniature Limit Switch MPN:D4CC3032

This compact limit switch is engineered to be thin, durable, and highly sealed. The triple-sealed design includes a nitrile rubber packing seal on the plunger section, a nitrile rubber cap on the switch section, and an encapsulating material around the cable entrance. It also features rugged, die-cast housing.

Technical Specifications

• Limit Switch Style General Purpose Limit Switch
• Basic Actuator Style - Limit Switch Plunger
• Actuator Style - Limit Switch Plunger, Roller
• Actuator Location - Limit Switch Top
• AC Contact Rating - Limit Switch Not Rated
• DC Contact Rating - Limit Switch 1A @ 30V
• Contact Form- Switches SPDT
• Body Height - Limit Switch 2.13 in
• Body Width - Limit Switch 1.33 in
• Body Depth - Limit Switch 0.63 in
• Boot Sealed Actuator - Limit Switch Yes
• Mounting - Limit Switch Surface
• Body Style - Limit Switch Miniature
• NEMA Rating 13, 3, 4
• Wiring Entry Connector
• Electrical Connection M12 4-Pin Connector
• IP Rating 67
• Movement Top
• Travel Maximum Pre-Travel 1.8mm, Minimum Over-Travel 3mm
• Series D4CC
• Operating Temp. Range -14 Degrees to 158 Degrees F
• Mounting Hole Pattern - Limit Switch 2 Hole Horizontal
• Mounting Hole Spacing - Limit Switch 0.98 in
• Mounting Hole - Limit Switch (2) 0.20 in dia
• Stem Thread - Limit Switch No Stem
• Roller Material Stainless Steel
• Roller Dia. 0.47 in
• Roller Width 0.2 in
• Body Material Aluminum
• Operating Force 17.7 N-m
• Standards CE, CSA, UL

Manufacturer Details

• Manufacturer: Omron
• Condensed Mfg Number: D4CC3032
• MPN: D4CC3032

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: JP
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8536509055
• GDS Category Name: Limit / Interlock Switches
• GDS Family Name: Switches
• GDS Segment Name: Electrical
• UNSPSC: 39121509
• UNSPSC Class ID: 15
• UNSPSC Commodity Name: Switches and controls and relays and accessories
• UNSPSC Commodity ID: 09
• UNSPSC Commodity Name: Limit switches
• UNSPSC Family ID: 12
• UNSPSC Family Name: Electrical equipment and components and supplies
• UNSPSC Segment ID: 39
• UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies

Shipping Details

• Not For Sale In: HI AK PR
