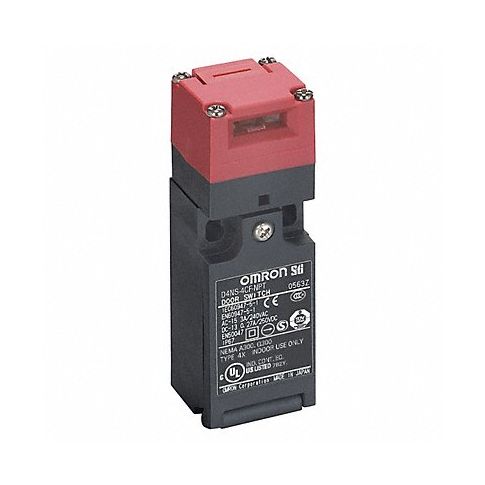

Safety Interlock Switch 1NO/2NC 10A@240V MPN:D4NS-4CF-NPT
SKU
226-CXG-20LF03
Safety Interlock Switch 1NO/2NC 10A@240V
Introducing Omron's Safety Interlock Switch - designed to provide a safe working environment for machine tools and equipment operators. This versatile switch features an easy-to-install design, suitable for both standard and microload loads. The plastic locking style ensures durability and reliability in demanding settings. Its 1NO/2NC contact form allows for simple wiring and circuit control. With an actuator length dependent on the use of a key, this switch offers flexibility to suit various needs. It is ideal for use in food processing, packaging, and material handling industries, where safeguarding against accidental door openings is critical. Choose Omron's Safety Interlock Switch to ensure operator safety and maximize productivity.
Top product features:
- Designed to shut off control circuits when protective doors are opened on machine tools and other pieces of equipment
- Functions with both standard loads and microloads
- Actuation keys are available separately
Top product applications:
- Protecting workers and ensuring machine safety in manufacturing settings
- Securing equipment and preventing unauthorized access in restricted areas
- Safeguarding valuable inventory or materials during transportation
This safety door switch is designed to shut off control circuits when protective doors are opened on machine tools and other pieces of equipment. It functions with both standard loads and microloads. Actuation keys are available separately.
Technical Specifications
- Item Safety Interlock Switch
- Style Plastic Locking
- Contact Form 1NO/2NC
- Actuator Length Key Dependent
- Connection Type M20
- AC Contact Rating 10A @ 240V
- Series D4NS
- DC Contact Rating 2.5A @ 250V
- Height 4.7656 in
- Width 1.2188 in
- Depth 1.1875 in
- IP Rating 67
- Operating Temp. Range -30 Degrees to 70 Degrees C
- Contact Material Gold Clad
- Conduit Size M20
- Body Material Polyamide
- Head Material Polyamide
- Description/Special Features Applicable to Both Standard and Micro loads, Standardized Gold-Clad Contacts Provide High Contact Reliability
- Pre-travel 10 +/-5mm
- Positive Travel 20mm
- Movement Lateral
- Operating Force 19.61 in-lb Max
- Standards CSA C22.2 No. 14, EN60947-5-1 (Certified Direct Opening), GB14048.5, GS-ET-15, UL508
- Includes 1/2 in NPT Adapter
Manufacturer Details
- Manufacturer: Omron
- Condensed Mfg Number: D4NS4CFNPT
- MPN: D4NS-4CF-NPT
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: JP
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536509065
- GDS Category Name: Safety Interlock Switches
- GDS Family Name: Switches
- GDS Segment Name: Electrical
- UNSPSC: 39121501
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Switches and controls and relays and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Safety switches
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on November 17, 2023 12:15pm UTC
Category: Switches
