Loop Hanger J 1/2 In Electro-Zinc Plated MPN:4180050EG
SKU
226-CXO-4UEF7

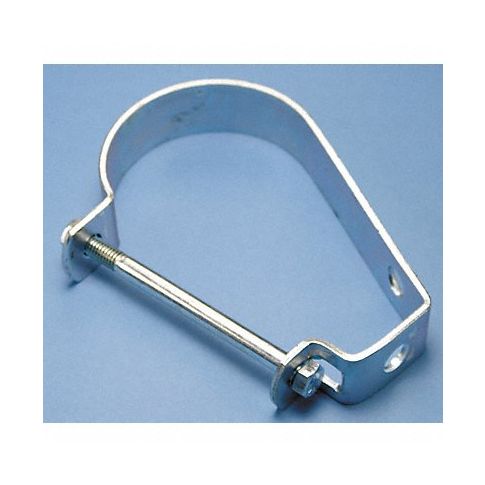

Loop Hanger J 1/2 In Electro-Zinc Plated
The loop hanger J with a half-inch diameter constructed from electro-zinc plating serves as an economical fastening option ideal for diverse applications across the automotive, agricultural, or construction sectors thus its utility in outdoor installations subject to weather elements requires protection thus offering durability. As a heavy-duty option, it features 7/8ths bearing pins & 5/8th threaded studs providing robust support capable of sustaining heavier loads thus beneficial when affixing equipment needing steadfast anchor points hence widely adopted among users in need of securement solutions in rugged conditions, promoting safety requirements ensuring reliability during use.
Loop HangersRecommended for suspension of stationary noninsulated pipelines.Meet Federal Specifications WW-H-171 (Type 10), MSS SP-58, and SP-69 (Type 10).Electro-Zinc Plated, J-StyleCan be suspended by hanger rod or attached to wall.Conform to MSS SP58 and SP-69 (Type 5).
Technical Specifications
- Item Loop Hanger
- Type J Style
- Pipe Size (In.) 1/2 in
- Rod Size 3/8 in
- Max. Load (Lb.) 400
- Material Electro-Galvanized Steel
- Length (In.) 41/50 in
- Width (In.) 2 3/4 in
- Height (In.) 1 3/4 in
- Thread Size (In.) 3/8
- Metal Detectable Yes
- Description/Special Features For Suspending Stationary Non-Insulated Pipe Lines
- Standards Conforms with Manufacturers Standardization Society (MSS) SP58 (Type 5)
Manufacturer Details
- Manufacturer: Nvent Caddy
- Condensed Mfg Number: 4180050EG
- MPN: 4180050EG
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Pipe Hangers and Clamps
- GDS Family Name: Pipe and Tubing
- GDS Segment Name: Plumbing
- UNSPSC: 31162306
- UNSPSC Class ID: 23
- UNSPSC Commodity Name: Mounting hardware
- UNSPSC Commodity ID: 06
- UNSPSC Commodity Name: Mounting hangers
- UNSPSC Family ID: 16
- UNSPSC Family Name: Hardware
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on June 10, 2023 12:43am UTC
Category: Pipe and Tubing
