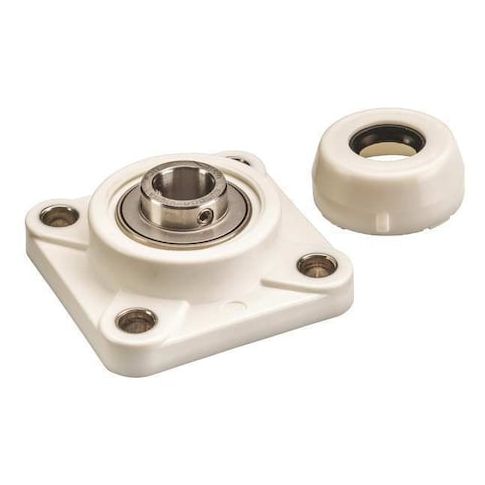

4 Mount Holes, Square, 4 Bolt Flange Bearing, Radial Ball, 1 in Dia, Polymer, Set Screw Locking MPN:SUCFPL205-16C0FG1
4 Mount Holes, Square, 4 Bolt Flange Bearing, Radial Ball, 1 in Dia, Polymer, Set Screw Locking
This 4-bolt flange bearing from NTN is a reliable and versatile solution for a wide range of applications, including food processing, pharmaceutical, and chemical manufacturing. With a stainless steel bearing insert and FDA/USDA-H1 solid grease, it meets the highest standards for hygiene and cleanliness. Its fixed expansion type and double-sealed closure ensure long-lasting performance, even in extreme temperatures (-4°F to 250°F). The bearing is designed for use in cylindrical bores and can withstand high speeds up to 5,100 RPM. Its compact size and square housing make it ideal for tight spaces, making it an excellent choice for OEMs and maintenance professionals.
Top product features:
- Double sealed closure to protect the bearing from contaminants and debris
- Radial ball bearing design for smooth rotation and low friction
- Fixed expansion type to maintain consistent bearing alignment and prevent vibration
Top product applications:
- Food Processing Equipment
- Pump Mounting
- Conveyor Mounting
4 Bolt Flange Bearing, Back Side to Center Width 0.669 in, Bearing Insert Material Stainless Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 in, Bore Type Cylindrical, Closure Double Sealed, Expansion Type Fixed, Housing Material Polymer, Housing Type Square, Included Bearing SUC205-16FG1, Lubricant Material FDA/USDA-H1 Solid Grease, Maximum Speed 5,100 RPM, Maximum Temperature 250 Degrees F, Minimum Temperature -4 Degrees F, Mount Hole Center-to-Center Height 2 3/4 in
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.20
- Package Width: 4.10
- Package Height: 2.80
- Package Weight: 0.85
Product info last updated on January 30, 2026 9:59pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
