Pillow Block Bearing 1 3/8 in Bore SS MPN:SUCP207-22CO
SKU
226-CXO-7AY19

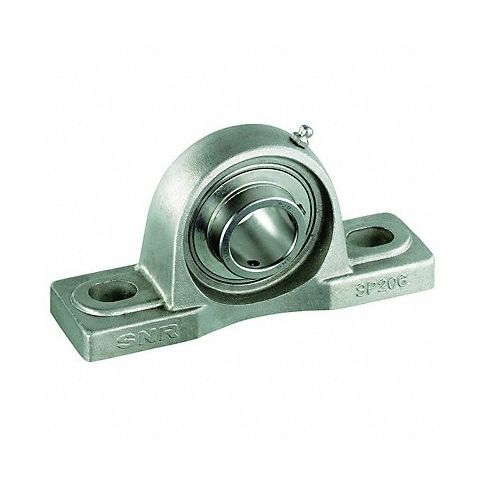

Pillow Block Bearing 1 3/8 in Bore SS
The Pillow Block Bearing is an economical bearing option designed to provide support for rotating shafts in a variety of industries. Constructed from sturdy stainless steel, this bearing ensures long-lasting durability and the ability to handle heavy loads with ease. Its compact design allows for quick installation without any additional accessories required, while its size can accommodate up to 1-3/8 inch diameter shafts. With versatile application in sectors such as agriculture, construction, or manufacturing, this reliable pillow block bearing delivers smooth operation and excellent stability at an affordable cost making it ideal for small to medium applications looking to optimize their performance and productivity levels.
⛟ Always get free shipping and support Veteran owned businesses by shopping our huge selection of Hardware Accessories including NTN item #SUCP207-22CO.
Technical Specifications
- Item Pillow Block Bearing
- Mounted Bearing Item Pillow Block Bearing
- Bearing Insert Type Ball
- Bore Dia. 1-3/8 in
- Bolt Hole Center-to-Center 127 mm
- Mounting Surface to Shaft Center 47.6 mm
- Bearing Housing Material Type Stainless Steel
- Shaft Locking Type Set Screw
- Bearing Insert Material 440C Stainless Steel
- Series SUCP
- Number of Bolts 2
- Bolt Size M14
- Overall Height 94mm
- Overall Width 57.4mm
- Overall Length 167mm
- Bearing Lubrication Caltex FM EP or Equivalent USDA-H1 Grease
- Dynamic Load Capacity 4,520 lb
- Static Load Capacity 3,510 lb
- Temp. Range -4 Degrees to 230 Degrees F
- Finish Chrome
- Includes Stainless Steel End Cap
Manufacturer Details
- Manufacturer: NTN
- Condensed Mfg Number: SUCP20722CO
- MPN: SUCP207-22CO
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483204040
- GDS Category Name: Pillow Block Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171511
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 11
- UNSPSC Commodity Name: Pillow block bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on June 10, 2023 12:40am UTC
Category: Bearings
