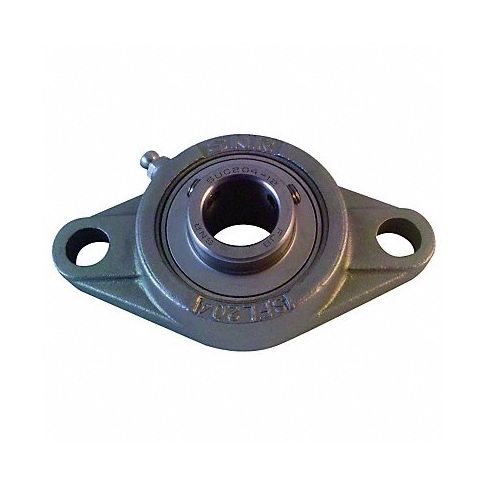

Pillow Block Bearing 1 3/8 in Bore SS MPN:SUCFL207-22CC
The Pillow Block Bearing offers an economical yet reliable option for rotational support, featuring a solid stainless steel construction that provides maximum durability and resistance to wear even under heavy loads. Its compact design allows for easy installation without the need of any additional accessories and accommodates shafts measuring up to 1-3/8 inch in diameter. The versatile pillow block bearing is suitable for use in a wide array of industries such as agriculture, construction, or manufacturing making it an excellent solution for small-to-medium applications requiring stable support while ensuring smooth operation. It offers cost efficiency while maintaining high-quality functionality, making it a popular choice among professionals looking to optimize their machinery's performance and productivity at a budget-friendly price point.
Technical Specifications
- Item Pillow Block Bearing
- Mounted Bearing Item Pillow Block Bearing
- Bearing Insert Type Ball
- Bore Dia. 1-3/8 in
- Bolt Hole Center-to-Center 130 mm
- Mounting Surface to Shaft Center 90 mm
- Bearing Housing Material Type Stainless Steel
- Shaft Locking Type Set Screw
- Bearing Insert Material 440C Stainless Steel
- Series SUCFL
- Number of Bolts 2
- Bolt Size M14
- Overall Height 47.7mm
- Overall Width 90mm
- Overall Length 156mm
- Bearing Lubrication Caltex FM EP or Equivalent USDA-H1 Grease
- Dynamic Load Capacity 4,520 lb
- Static Load Capacity 3,510 lb
- Temp. Range -4 Degrees to 230 Degrees F
- Finish Chrome
- Includes Stainless Steel End Cap
Manufacturer Details
- Manufacturer: NTN
- Condensed Mfg Number: SUCFL20722CC
- MPN: SUCFL207-22CC
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483204040
- GDS Category Name: Pillow Block Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171501
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Flanged bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
