2 Bolt Flng Brg Radial Ball 1 1/4in Bore MPN:SUCFL206-20CC
SKU
226-CXO-7AY12

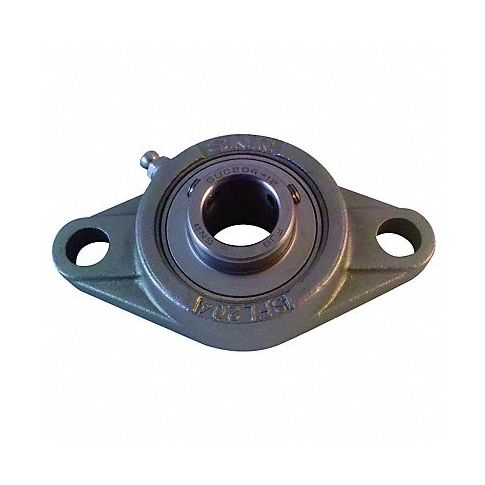

2 Bolt Flng Brg Radial Ball 1 1/4in Bore
Our premium 2 Bolt Flange Radial Ball Bearing offers superior load-bearing capacity and reduced friction, ensuring smooth operation in heavy-duty machining or automotive applications. With a bore size of 1-1/4 inches and one-piece brass cage and chrome steel bearings, this product delivers durability and precision for demanding power transmission applications.
⛟ Always get free shipping and support Veteran owned businesses by shopping our huge selection of Hardware Accessories including NTN item #SUCFL206-20CC.
Technical Specifications
- Item 2-Bolt Flange Bearing
- Mounted Bearing Item 2-Bolt Flange Bearing
- Bearing Insert Type Ball
- Bore Dia. 1-1/4 in
- Shaft Locking Type Set Screw
- Bearing Housing Material Type Stainless Steel
- Bearing Insert Material 440C Stainless Steel
- Bolt Hole Center-to-Center 117 mm
- Series SUCFL
- Bolt Size M14
- Overall Height 44.4mm
- Overall Width 80mm
- Overall Length 141mm
- Bearing Lubrication Caltex FM EP or Equivalent USDA-H1 Grease
- Dynamic Load Capacity 3,400 lb
- Static Load Capacity 2,580 lb
- Temp. Range -4 Degrees to 230 Degrees F
- Finish Chrome
- Includes Stainless Steel End Cap
Manufacturer Details
- Manufacturer: NTN
- Condensed Mfg Number: SUCFL20620CC
- MPN: SUCFL206-20CC
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483204040
- GDS Category Name: Flange Mount Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171501
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Flanged bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on June 10, 2023 12:44am UTC
Category: Bearings
