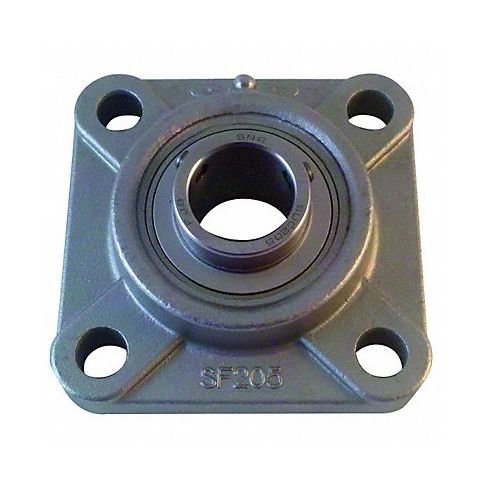

4 Bolt Flng Brg Radial Ball 1in Bore MPN:SUCF205-16CC

Technical Specifications

• Item 4-Bolt Flange Bearing
• Mounted Bearing Item 4-Bolt Flange Bearing
• Bearing Insert Type Ball
• Bore Dia. 1 in
• Shaft Locking Type Set Screw
• Bearing Housing Material Type Stainless Steel
• Bearing Insert Material 440C Stainless Steel
• Bolt Hole Center-to-Center 70 mm
• Series SUCF
• Bolt Size M10
• Overall Height 39.9mm
• Overall Width 95mm
• Overall Length 95mm
• Bearing Lubrication Caltex FM EP or Equivalent USDA-H1 Grease
• Dynamic Load Capacity 2,475 lb
• Static Load Capacity 1,800 lb
• Temp. Range -4 Degrees to 230 Degrees F
• Finish Chrome
• Includes Stainless Steel End Cap

Manufacturer Details

• Manufacturer: NTN
• Condensed Mfg Number: SUCF20516CC
• MPN: SUCF205-16CC

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: ZZ
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8483204040
• GDS Category Name: Flange Mount Bearings
• GDS Family Name: Bearings
• GDS Segment Name: Power Transmission
• UNSPSC: 31171501
• UNSPSC Class ID: 15
• UNSPSC Commodity Name: Bearings
• UNSPSC Commodity ID: 01
• UNSPSC Commodity Name: Flanged bearings
• UNSPSC Family ID: 17
• UNSPSC Family Name: Bearings and bushings and wheels and gears
• UNSPSC Segment ID: 31
• UNSPSC Segment Name: Manufacturing Components and Supplies

Shipping Details

• Not For Sale In: HI AK PR
