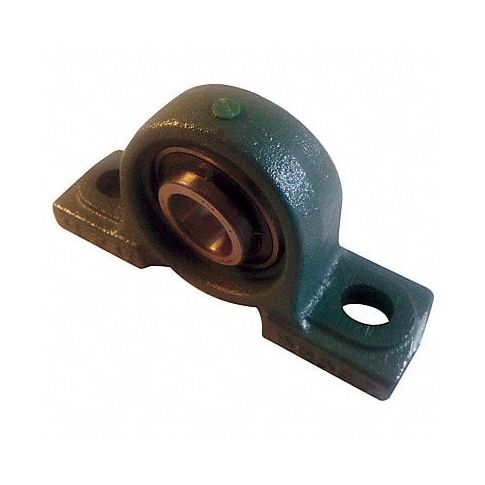

Pillow Block Brg 2 3/16in Bore Cast Iron MPN:UCPX11-203D1
SKU
226-CXO-5ZUJ4
Pillow Block Brg 2 3/16in Bore Cast Iron
Pillow block bearings are designed to accommodate axial and radial loads, while the cast iron version features a durable construction with a two-piece assembly that houses the bearing and allows for easy installation and removal without disturbing the shaft. The open style facilitates lubrication, reducing contamination and wear, and their standard dimensions make them compatible with existing machinery or equipment, making them a cost-effective solution across different industries and applications where precise, reliable bearings are needed to provide stability, minimize vibrations, and reduce maintenance requirements.
⛟ Always get free shipping and support Veteran owned businesses by shopping our huge selection of Hardware Accessories including NTN item #UCPX11-203D1.
Technical Specifications
- Item Pillow Block Bearing
- Mounted Bearing Item Pillow Block Bearing
- Bearing Insert Type Ball
- Bore Dia. 2 3/16 in
- Bolt Hole Center-to-Center 7 1/4 in
- Mounting Surface to Shaft Center 2 3/4 in
- Bearing Housing Material Type Cast Iron
- Shaft Locking Type Set Screw
- Bearing Insert Material 52100 Chrome Steel
- Series Medium Duty
- Number of Bolts 2
- Bolt Size 3/4 in
- Overall Height 5 13/32 in
- Overall Width 3 1/8 in
- Overall Length 10 1/4 in
- Bearing Lubrication Shell Alvania #3 or NLGI #3 Equivalent
- Dynamic Load Capacity 11,810 lb
- Static Load Capacity 8,100 lb
- Temp. Range -20 Degrees to 250 Degrees F
- Finish Painted
Manufacturer Details
- Manufacturer: NTN
- Condensed Mfg Number: UCPX11203D1
- MPN: UCPX11-203D1
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: JP
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483204040
- GDS Category Name: Pillow Block Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171511
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 11
- UNSPSC Commodity Name: Pillow block bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 3, 2024 10:16pm UTC
Category: Bearings
