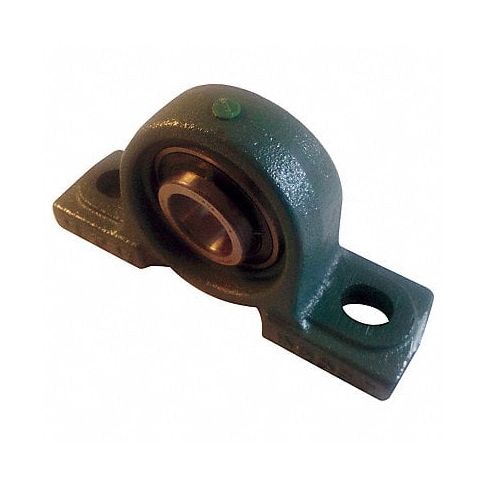

Pillow Block Brg 1 15/16in Bore Cst Iron MPN:UCPX10-115D1
The Cast Iron Pillow Block Bearing is designed with a simple yet innovative housing that features an open-faced design, making it suitable for applications where minimal lubrication is required, providing the convenience of low maintenance requirements and is ideal for industries such as agriculture, mining, construction, among others. These bearings are capable of handling radial loads and some axial loads, with shafts up to 3 inch diameter. Its sturdy construction enables the transfer of high levels of torque while maintaining smooth operation at competitive prices, perfect for all those applications where high reliability is essential, at a cost-effective solution with a simple design and easy installation making it the preferred choice among professionals who need durable machinery components.
Technical Specifications
- Item Pillow Block Bearing
- Mounted Bearing Item Pillow Block Bearing
- Bearing Insert Type Ball
- Bore Dia. 1 15/16 in
- Bolt Hole Center-to-Center 6 23/32 in
- Mounting Surface to Shaft Center 2 1/2 in
- Bearing Housing Material Type Cast Iron
- Shaft Locking Type Set Screw
- Bearing Insert Material 52100 Chrome Steel
- Series Medium Duty
- Number of Bolts 2
- Bolt Size 5/8 in
- Overall Height 4 31/32 in
- Overall Width 2 7/8 in
- Overall Length 9 1/2 in
- Bearing Lubrication Shell Alvania #3 or NLGI #3 Equivalent
- Dynamic Load Capacity 9,780 lb
- Static Load Capacity 6,570 lb
- Temp. Range -20 Degrees to 250 Degrees F
- Finish Painted
Manufacturer Details
- Manufacturer: NTN
- Condensed Mfg Number: UCPX10115D1
- MPN: UCPX10-115D1
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: JP
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483204040
- GDS Category Name: Pillow Block Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171511
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 11
- UNSPSC Commodity Name: Pillow block bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
