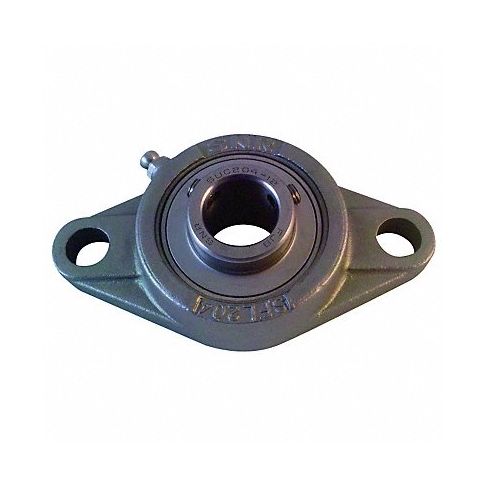

2 Bolt Flng Brg Radial 1 7/16in Bore MPN:SUCFL207-23
2 Bolt Flng Brg Radial 1 7/16in Bore
This two bolt flange radial bearing with a 1 7/16 bore offers several advantages for its users, including reliable rotational support, durability, and stability under high pressure. Ideal for industries such as agriculture, construction, mining, and others requiring precise rotation, professionals like mechanics, engineers, and maintenance personnel can rely on the bearing's versatile design to fit various applications. Its ability to perform well in challenging environments makes it a go-to tool for those who demand accuracy and reliability in their work.
Buy NTN item #SUCFL207-23 from our huge selection of Hardware Accessories to show your support for our ♻ Socially Responsible Veteran-Owned Business.
Technical Specifications
- Item 2-Bolt Flange Bearing
- Mounted Bearing Item 2-Bolt Flange Bearing
- Bearing Insert Type Ball
- Bore Dia. 1 7/16 in
- Shaft Locking Type Set Screw
- Bearing Housing Material Type Stainless Steel
- Bearing Insert Material 440C Stainless Steel
- Bolt Hole Center-to-Center 130 mm
- Series Corrosion Resistant with USDA-H1 Grease
- Bolt Size M14
- Overall Height 44.4 mm
- Overall Width 90 mm
- Overall Length 156 mm
- Bearing Lubrication Caltex FM EP or Equivalent USDA-H1 Grease
- Dynamic Load Capacity 4,520 lb
- Static Load Capacity 3,510 lb
- Temp. Range -4 Degrees to 248 Degrees F
- Finish Chrome
- Dimension A 161 mm
- Dimension E 130 mm
- Dimension G 15 mm
- Dimension L 34 mm
- Dimension N 17.5 mm
- Dimension S 16 mm
Manufacturer Details
- Manufacturer: NTN
- Condensed Mfg Number: SUCFL20723
- MPN: SUCFL207-23
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483204040
- GDS Category Name: Flange Mount Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171501
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Flanged bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 3, 2024 10:16pm UTC
Category: Bearings
