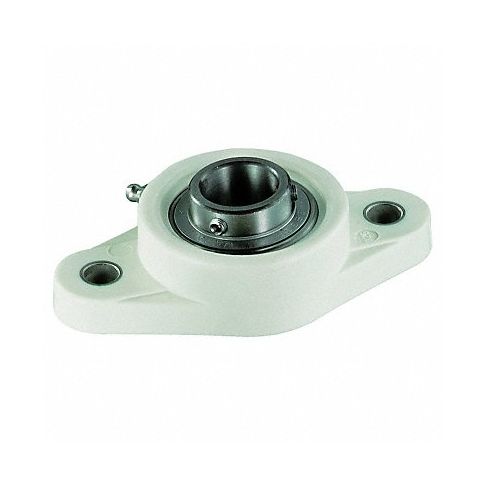

2 Bolt Flange Brg Radial Ball 5/8in Bore MPN:SUCNFL202-10

Technical Specifications

• Item 2-Bolt Flange Bearing
• Mounted Bearing Item 2-Bolt Flange Bearing
• Bearing Insert Type Ball
• Bore Dia. 5/8 in
• Shaft Locking Type Set Screw
• Bearing Housing Material Type PBT
• Bearing Insert Material 52100 Chrome Steel
• Bolt Hole Center-to-Center 90 mm
• Series Corrosion Resistant with USDA-H1 Grease
• Bolt Size M10
• Overall Height 64.8 mm
• Overall Width 33.7 mm
• Overall Length 130 mm
• Bearing Lubrication Caltex FM EP or Equivalent USDA-H1 Grease
• Dynamic Load Capacity 2,450 lb
• Static Load Capacity 1,190 lb
• Temp. Range -4 Degrees to 230 Degrees F
• Finish None

Manufacturer Details

• Manufacturer: NTN
• Condensed Mfg Number: SUCNFL20210
• MPN: SUCNFL202-10

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: ZZ
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8483204040
• GDS Category Name: Flange Mount Bearings
• GDS Family Name: Bearings
• GDS Segment Name: Power Transmission
• UNSPSC: 31171501
• UNSPSC Class ID: 15
• UNSPSC Commodity Name: Bearings
• UNSPSC Commodity ID: 01
• UNSPSC Commodity Name: Flanged bearings
• UNSPSC Family ID: 17
• UNSPSC Family Name: Bearings and bushings and wheels and gears
• UNSPSC Segment ID: 31
• UNSPSC Segment Name: Manufacturing Components and Supplies

Shipping Details

• Not For Sale In: HI AK PR
