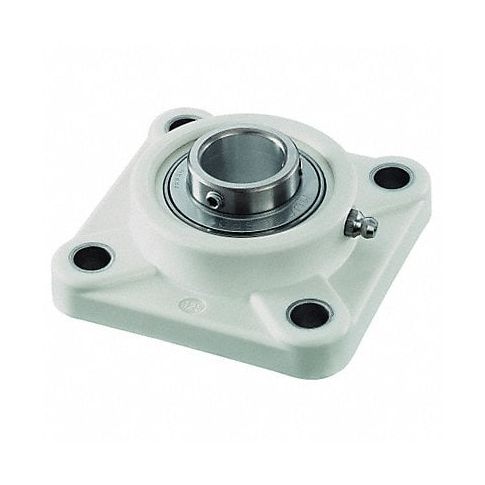

4 Bolt Flng Brg Radial 1 3/16in Bore MPN:SUCFPL206-19
Our Four-bolt Flange bearing is an economical solution that provides high-quality support for industrial equipment and machinery in need of radial loading. Made from premium metals, this product features a one-piece ring design with separate shoulders to ensure precise alignment between the shaft and the housing while reducing vibration, noise, and heat generation. Designed specifically for the mining, oil and gas, construction or general machinery sectors, these bearings provide consistent performance and prolong bearing life by supporting large thrust loads under high pressure situations. Their 1-3/16 bore is suitable for a wide range of shaft diameters allowing for versatile installation and usage making it an ideal addition to any maintenance, repair or replacement project where reliable support is essential.
Technical Specifications
- Item 4-Bolt Flange Bearing
- Mounted Bearing Item 4-Bolt Flange Bearing
- Bearing Insert Type Ball
- Bore Dia. 1 3/16 in
- Shaft Locking Type Set Screw
- Bearing Housing Material Type PBT
- Bearing Insert Material 52100 Chrome Steel
- Bolt Hole Center-to-Center 83 mm
- Series Corrosion Resistant with USDA-H1 Grease
- Bolt Size M10
- Overall Height 107 mm
- Overall Width 41.4 mm
- Overall Length 107 mm
- Bearing Lubrication Caltex FM EP or Equivalent USDA-H1 Grease
- Dynamic Load Capacity 3,750 lb
- Static Load Capacity 2,030 lb
- Temp. Range -4 Degrees to 230 Degrees F
- Finish None
- Dimension A 4 1/4 in
- Dimension B 1 1/2 in
- Dimension E 3 1/4 in
- Dimension G 9/16 in
- Dimension S 7/16 in
Manufacturer Details
- Manufacturer: NTN
- Condensed Mfg Number: SUCFPL20619
- MPN: SUCFPL206-19
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483204040
- GDS Category Name: Flange Mount Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171501
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Flanged bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
