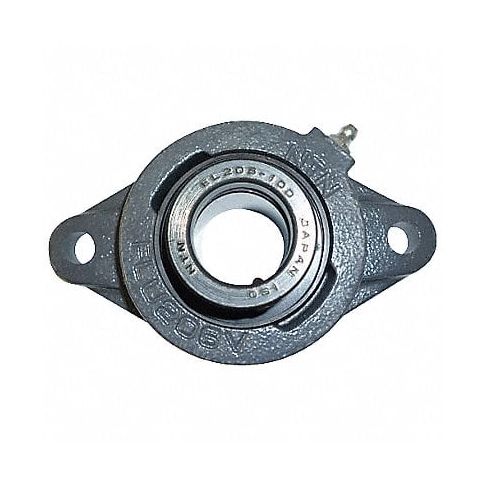

2 Bolt Flng Brg Radial Ball 1 1/2in Bore MPN:UELFLU-1.1/2M
SKU
226-CXO-5RYZ4
2 Bolt Flng Brg Radial Ball 1 1/2in Bore
The radial ball bearing 2 bolt flange features a 1.5 inch bore, providing precise rotation capabilities for applications requiring high speed or load-bearing capacity. This product is suitable for numerous industries including automotive, machinery manufacturing, construction equipment and more where smooth and efficient operation of mechanical components is essential. With its compatibility across diverse applications and industries, the 2 bolt flange radial ball bearing can benefit a wide array of customers in various professional settings.
Mounted Ball Bearings• Temp. range: -20° to 250°FFeature cast-iron housings. Elastomeric seal with flinger preserves lubricant and keeps contaminants out. Ultra-Class units have solid base construction for optimum load and shock stability and black oxide coating for superior environmental protection.
Technical Specifications
- Item 2-Bolt Flange Bearing
- Mounted Bearing Item 2-Bolt Flange Bearing
- Bearing Insert Type Ball
- Bore Dia. 1 1/2 in
- Shaft Locking Type Eccentric Locking Collar
- Bearing Housing Material Type Cast Iron
- Bearing Insert Material 52100 Chrome Steel
- Bolt Hole Center-to-Center 5 21/32 in
- Series Standard Duty
- Bolt Size 1/2 in
- Overall Height 2 5/16 in
- Overall Width 4 1/8 in
- Overall Length 6 25/32 in
- Bearing Lubrication Shell Alvania #3 or NLGI #3 Equivalent
- Dynamic Load Capacity 6,550 lb
- Static Load Capacity 4,000 lb
- Temp. Range -20 Degrees to 250 Degrees F
- Finish Painted
- Dimension A 1 17/32 in
- Dimension Ao 2 5/16 in
- Dimension D 1 1/2 in
- Dimension H 6 25/32 in
- Dimension J 5 21/32 in
- Dimension L 4 1/8 in
- Dimension N 33/64 in
- Dimension S 27/32 in
Manufacturer Details
- Manufacturer: NTN
- Condensed Mfg Number: UELFLU112M
- MPN: UELFLU-1.1/2M
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: JP
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483204040
- GDS Category Name: Flange Mount Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171501
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Flanged bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 3, 2024 10:15pm UTC
Category: Bearings
