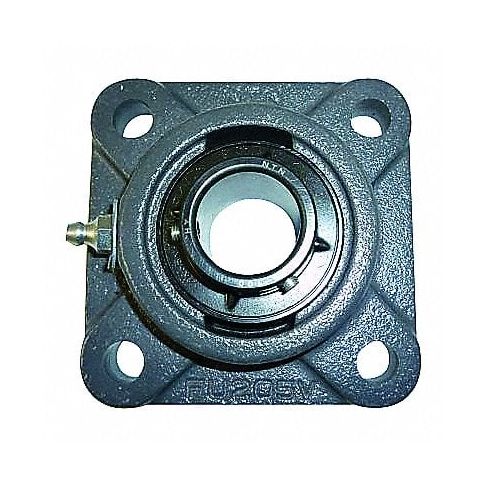

4 Bolt Flng Brg Radial Ball 2 1/4in Bore MPN:UCFUX-2.1/4M

Mounted Ball Bearings
• Temp. range: -20° to 250°F
Feature cast-iron housings. Elastomeric seal with flinger preserves lubricant and keeps contaminants out. Ultra-Class units have solid base construction for optimum load and shock stability and black oxide coating for superior environmental protection.

Technical Specifications

• Item 4-Bolt Flange Bearing
• Mounted Bearing Item 4-Bolt Flange Bearing
• Bearing Insert Type Ball
• Bore Dia. 2 1/4 in
• Shaft Locking Type Set Screw
• Bearing Housing Material Type Cast Iron
• Bearing Insert Material 52100 Chrome Steel
• Bolt Hole Center-to-Center 5 5/8 in
• Series Medium Duty
• Bolt Size 5/8 in
• Overall Height 2 29/32 in
• Overall Width 6 7/8 in
• Overall Length 6 7/8 in
• Bearing Lubrication Shell Alvania #3 or NLGI #3 Equivalent
• Dynamic Load Capacity 11,800 lb
• Static Load Capacity 8,150 lb
• Temp. Range -20 Degrees to 250 Degrees F
• Finish Painted

Manufacturer Details

• Manufacturer: NTN
• Condensed Mfg Number: UCFUX214M
• MPN: UCFUX-2.1/4M

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: JP
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8483204040
• GDS Category Name: Flange Mount Bearings
• GDS Family Name: Bearings
• GDS Segment Name: Power Transmission
• UNSPSC: 31171511
• UNSPSC Class ID: 15
• UNSPSC Commodity Name: Bearings
• UNSPSC Commodity ID: 11
• UNSPSC Commodity Name: Pillow block bearings
• UNSPSC Family ID: 17
• UNSPSC Family Name: Bearings and bushings and wheels and gears
• UNSPSC Segment ID: 31
• UNSPSC Segment Name: Manufacturing Components and Supplies

Shipping Details

• Not For Sale In: HI AK PR
