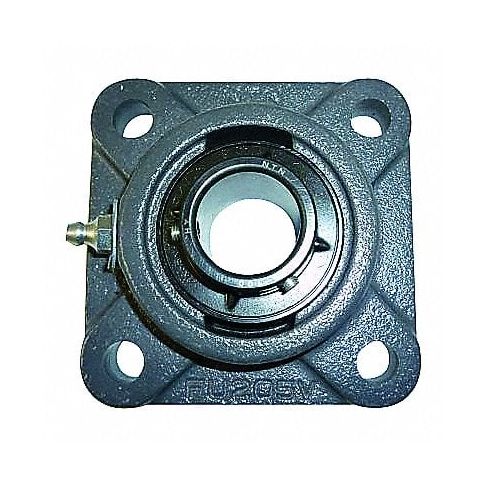

4 Bolt Flng Brg Radial 1 3/16in Bore MPN:UCFUX-1.3/16M
Our premium radial bolt flange offers superior durability for professional use in demanding power transmission applications requiring secure mounting of pulleys or sprockets, thanks to its 1-3/16-inch bore ensuring compatibility with various shaft sizes. Crafted from high-quality steel offering unbeatable strength while maintaining excellent surface finishes, the flange offers professional engineers an efficient solution to securely mount components with ease making it ideal for any industrial or manufacturing setting. With its versatile fitment options and unparalleled quality, our Four Bolt Flange delivers exceptional value perfect for professionals who demand reliable performance at competitive prices while delivering superior results in various power transmission applications such as conveyor systems, machine tool designs, and industrial robots.
Technical Specifications
- Item 4-Bolt Flange Bearing
- Mounted Bearing Item 4-Bolt Flange Bearing
- Bearing Insert Type Ball
- Bore Dia. 1 3/16 in
- Shaft Locking Type Set Screw
- Bearing Housing Material Type Cast Iron
- Bearing Insert Material 52100 Chrome Steel
- Bolt Hole Center-to-Center 3 5/8 in
- Series Medium Duty
- Bolt Size 7/16 in
- Overall Height 1 53/64 in
- Overall Width 4 3/8 in
- Overall Length 4 21/32 in
- Bearing Lubrication Shell Alvania #3 or NLGI #3 Equivalent
- Dynamic Load Capacity 5,750 lb
- Static Load Capacity 3,450 lb
- Temp. Range -20 Degrees to 250 Degrees F
- Finish Painted
- Dimension A 1 13/32 in
- Dimension Ao 1 53/64 in
- Dimension B 1 11/16 in
- Dimension D 1 3/16 in
- Dimension J 3 5/8 in
- Dimension L 4 21/32 in
- Dimension N 33/64 in
- Dimension S 11/16 in
Manufacturer Details
- Manufacturer: NTN
- Condensed Mfg Number: UCFUX1316M
- MPN: UCFUX-1.3/16M
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: JP
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483204040
- GDS Category Name: Flange Mount Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171511
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 11
- UNSPSC Commodity Name: Pillow block bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
