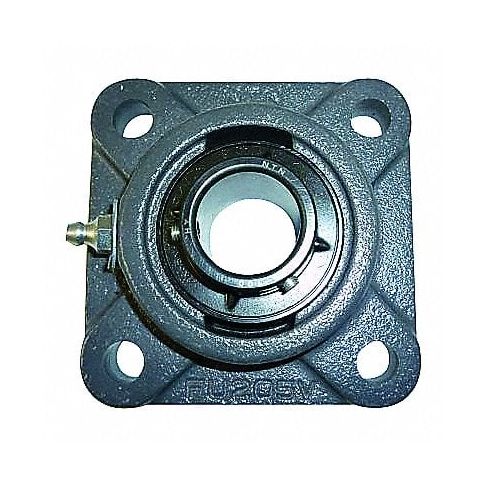

4 Bolt Flng Brg Radial 2 11/16in Bore MPN:UCFU-2.11/16M
A four bolt flange bearing provides outstanding strength, reliability, and high load-carrying capacity for diverse industrial applications such as pumps, conveyors, printing presses or pulp mills. Its construction features brass which is strong, durable, rustproof and corrosion resistant while the two 21/16 inches bores allow the use of multiple bolts for mounting to the application surface ensuring a secure grip reducing wobbling when in operation. The bearing can handle heavy weights with minimal movement while reducing noise from rolling elements which could damage adjacent equipment or hinder operation smoothness. Manufacturers, maintenance personnel in industries like agriculture, construction, mining or automotive sectors who need robust and reliable bearings to support demanding machinery can trust this product for maximum efficiency.
Technical Specifications
- Item 4-Bolt Flange Bearing
- Mounted Bearing Item 4-Bolt Flange Bearing
- Bearing Insert Type Ball
- Bore Dia. 2 11/16 in
- Shaft Locking Type Set Screw
- Bearing Housing Material Type Cast Iron
- Bearing Insert Material 52100 Chrome Steel
- Bolt Hole Center-to-Center 5 7/8 in
- Series Standard Duty
- Bolt Size 5/8 in
- Overall Height 3 1/4 in
- Overall Width 7 19/32 in
- Overall Length 7 19/32 in
- Bearing Lubrication Shell Alvania #3 or NLGI #3 Equivalent
- Dynamic Load Capacity 14,000 lb
- Static Load Capacity 9,900 lb
- Temp. Range -20 Degrees to 250 Degrees F
- Finish Painted
Manufacturer Details
- Manufacturer: NTN
- Condensed Mfg Number: UCFU21116M
- MPN: UCFU-2.11/16M
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: JP
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483204040
- GDS Category Name: Flange Mount Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171501
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Flanged bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
