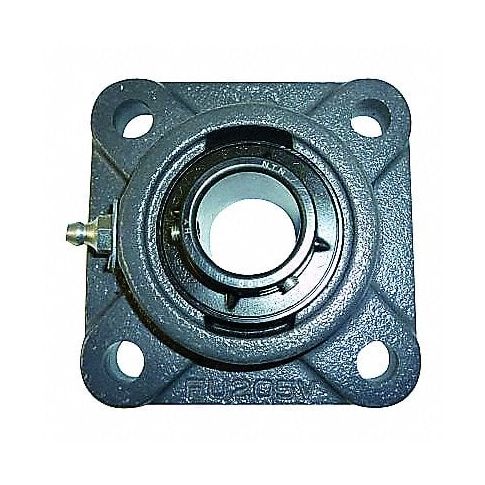

4 Bolt Flng Brg Radial 1 9/16in Bore MPN:UCFU-1.9/16M
SKU
226-CXO-5RYL0
4 Bolt Flng Brg Radial 1 9/16in Bore
The four bolt flanging bracket with a radial dimension of one and nine-sixteenths inches and bearing holes spaced equally apart offers users unrivaled griping ability for mounting or joining heavy duty equipment during operations protecting them from instability ensuring optimal safety, reliability and productivity. With the inclusion of four equally spaced bolt holes allowing for versatile and flexible customization to suit specific requirements as well as multiple size options available it serves the needs of diverse industries such as construction, automotive or machinery assembly guaranteeing compatibility with diverse machineries, components or fasteners requiring secure fixing during usage while minimizing maintenance or down time.
Mounted Ball Bearings• Temp. range: -20° to 250°FFeature cast-iron housings. Elastomeric seal with flinger preserves lubricant and keeps contaminants out. Ultra-Class units have solid base construction for optimum load and shock stability and black oxide coating for superior environmental protection.
Technical Specifications
- Item 4-Bolt Flange Bearing
- Mounted Bearing Item 4-Bolt Flange Bearing
- Bearing Insert Type Ball
- Bore Dia. 1 9/16 in
- Shaft Locking Type Set Screw
- Bearing Housing Material Type Cast Iron
- Bearing Insert Material 52100 Chrome Steel
- Bolt Hole Center-to-Center 4 in
- Series Standard Duty
- Bolt Size 7/16 in
- Overall Height 2 9/64 in
- Overall Width 5 5/32 in
- Overall Length 5 5/32 in
- Bearing Lubrication Shell Alvania #3 or NLGI #3 Equivalent
- Dynamic Load Capacity 6,550 lb
- Static Load Capacity 4,000 lb
- Temp. Range -20 Degrees to 250 Degrees F
- Finish Painted
- Dimension A 1 17/32 in
- Dimension Ao 2 9/64 in
- Dimension B 1 15/16 in
- Dimension D 1 9/16 in
- Dimension J 4 in
- Dimension L 5 5/32 in
- Dimension N 33/64 in
- Dimension S 3/4 in
Manufacturer Details
- Manufacturer: NTN
- Condensed Mfg Number: UCFU1916M
- MPN: UCFU-1.9/16M
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: JP
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483204040
- GDS Category Name: Flange Mount Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171501
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Flanged bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 3, 2024 10:15pm UTC
